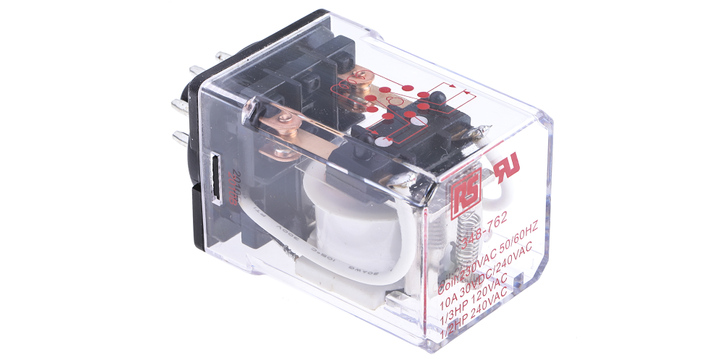

Rs Pro 348762 Plug in Power Relay, 230V Ac Coil, 10A Switching Current, Dpdt
Specifications
Please select at least one specification below.
Length
35 mm
Application
Power
Mounting Type
Plug In
Depth
35 mm
Height
56 mm
Contact Material
Silver Alloy
Contact Configuration
DPDT
Coil Voltage
230 V ac
Standards Met
CUR E125370, UL E125370
Minimum Operating Temperature
-45°C
Maximum Operating Temperature
+55°C
Terminal Type
Through Hole
Maximum Switching Voltage AC
240 V
Maximum Switching Voltage DC
30 V dc
Coil Power
2 W
Coil Resistance
8.2 Kilo Ohm
Isolation Coil To Contact
1.5 kV ac
Maximum Switching Power DC
300 W
Switching Current
10 A
Maximum Switching Power AC
2.4 kVA
Number of Poles
2
This spec is not available in the specification table.
Life
10 Million (Mechanical) cycles
This spec is not available in the specification table.
Latching
No
This spec is not available in the specification table.
Product Description
US $ 15.05
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 15.05 |
