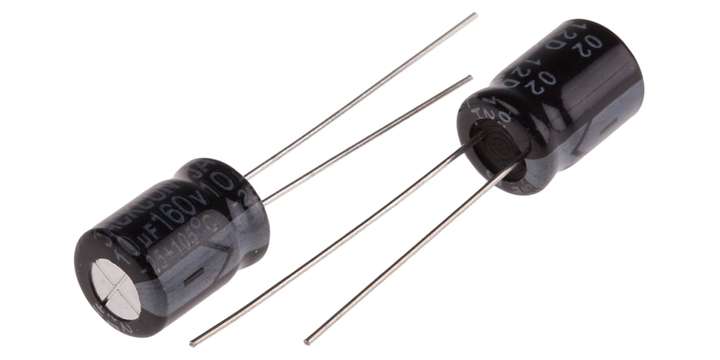

Rs Pro 1701294 10 Microfarad Aluminium Electrolytic Capacitor 160V Dc, Radial, Through Hole

Singapore

Search Keyword, Item or Model

Press

to jump to the search box

Shopping List

Cart

USD - US$

Rs Pro 1701294 10 Microfarad Aluminium Electrolytic Capacitor 160V Dc, Radial, Through Hole

View Brand

Rs Pro 1701294 10 Microfarad Aluminium Electrolytic Capacitor 160V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701294

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

160 VDC

Mounting Type

Radial, Through Hole

Dimensions

8 (Dia.) x 11 mm

Capacitance

10 µF

Lead Pitch

3.5 mm

Lifetime

2000h

Ripple Current

75 mA

Leakage Current

<=0.03 CV or 3 µA @ 1 min

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+105°C

Dissipation Factor

15%

Tolerance

±20%

Product Description

US $ 134.10

Quantity:

MOQ of 1000 EA

Bundle of 1000 EA

This item is sold by

SG-4570630354
