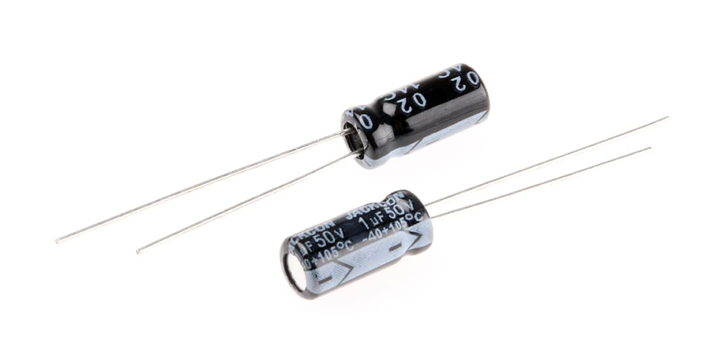

Rs Pro 1701242 1 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

View Brand

Rs Pro 1701242 1 Microfarad Aluminium Electrolytic Capacitor 50V Dc, Radial, Through Hole

Brand:	RS Pro
Model:	1701242

Technical Data Sheets

RS Pro Datasheet

Specifications

View other Aluminium Capacitors dimensions or variations

Voltage

50 VDC

Mounting Type

Radial, Through Hole

Dimensions

5 (Dia.) x 11 mm

Capacitance

1 µF

Lead Pitch

2 mm

Lifetime

1000h

Ripple Current

14 mA

Leakage Current

<=0.01 CV or 3 µA @ 1 min

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

10%

Tolerance

±20%

Product Description

US $ 46.70

Quantity:

MOQ of 1000 EA

Bundle of 1000 EA
