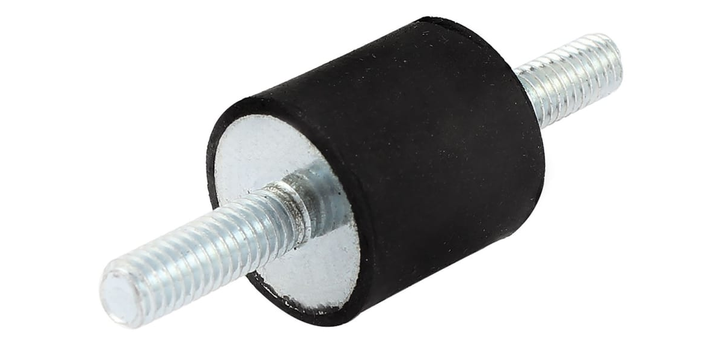

Rs Pro 1263982 M10 Anti Vibration Mount, Male to Male Bobbin With 146kg Compression Load (1 Bag of 2)
Technical Data Sheets
Specifications
Please select at least one specification below.
Thread Size
M10
Diameter
50 mm
Overall Height
40 mm
Series
AV Type A
Material
Natural Rubber
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Anti Vibration Mount Type
Male to Male Bobbin
Compression Load
146 kg
Metalwork
Zinc Plated Steel
Shore Hardness
60 Shore A
Shearing Load
53 kg
Compression Deflection
4 mm
Product Description
US $ 14.55
Quantity:
EA
This item is sold by
SG-4570630354
