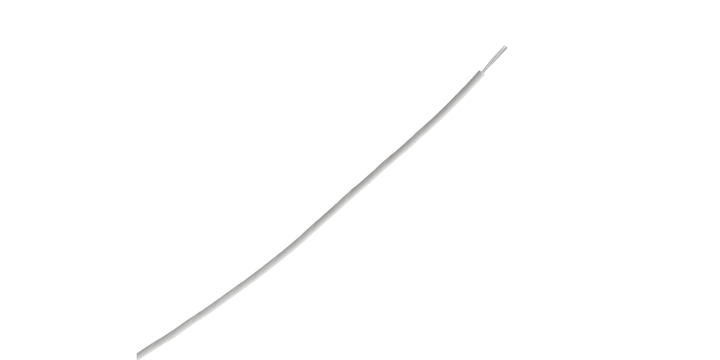

Rs Pro 1113142 White 0.2 Mm Hook up Wire, 24 Awg, 19/0.12 Mm, 100m, Polyamide Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Voltage Rating
600 V ac
Specification Met
EN 2084, EN 2267-009, FAR 25-869
Sheath Colour
White
Insulation Material
Polyamide
American Wire Gauge
24 AWG
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+260°C
Outer Diameter
0.96 mm
Number of Strands
19
Size of Strands
0.12 mm
Conductor Material
Nickel Plated Copper
Core Strands
19/0.12 mm
Cable Type
Airframe
Cable Shape
Single Core
Product Description
US $ 226.80
