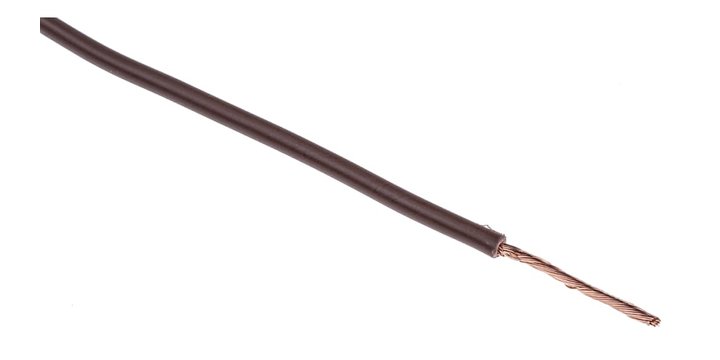

Rs Pro 0361800 Brown 1.5 Mm² Hook up Wire, 15 Awg, 30/0.25 Mm, 100m, Pvc Insulation (1 Reel of 100 Metres)
Technical Data Sheets
Specifications
Please select at least one specification below.
Length
100 m
Current Rating
15 A
Voltage Rating
750 V ac
Specification Met
BASEC
Sheath Colour
Brown
Insulation Material
PVC
American Wire Gauge
15 AWG
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
+70°C
Outer Diameter
3.4 mm
Number of Strands
30
Size of Strands
0.25 mm
Conductor Material
Annealed Copper
Core Strands
30/0.25 mm
Cable Shape
Single Core
Wire Style
2491X
Insulation Wall Thickness
0.7 mm
Product Description
US $ 90.45
Quantity:
EA
