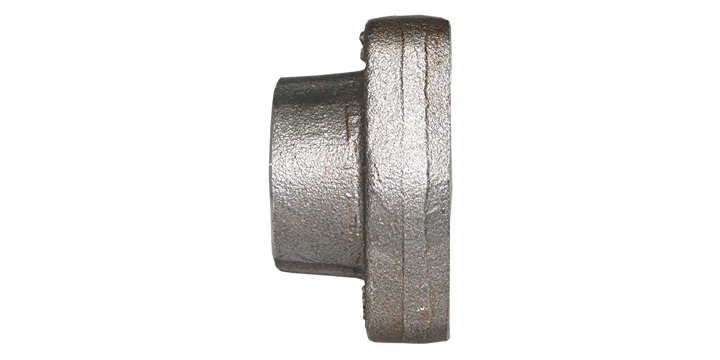

Oleo Tecnica Carbon Steel 4-Bolt Flange w/Metric Bolt Threads SAE-H-IT-N-3-F-40
Oleo Tecnica Carbon Steel 4-Bolt Flange w/Metric Bolt Threads SAE-H-IT-N-3-F-40
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-N-3-F-40 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
NPT
Flange Size
4"
Configuration
Flat Side
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M16
This spec is not available in the specification table.
Screw Length
50
mm
This spec is not available in the specification table.
Screw Torque (NM)
295
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-Bolt Flange w/Metric Bolt Threads, Sae J518 Standard
Oleo Tecnica Carbon Steel ST52.3 Sae Threaded 4-Bolt Flange Code 61 3000 Psi, 4 Npt Flat Side, 4-Bolt Flange w/Metric Bolt Threads, Sae J518 Standard
Technical Spec
- Netto Weight 3 KG
- Unit Dimension 14.6 X 4.8 X 16.2 CM
- Height Dimension 16,200
- Length Dimension 14.600
- Width Dimension 4.800
- Dimension uom 14.600
US $ 40.78
Quantity:
EA
Stock:
15 EA in stock
