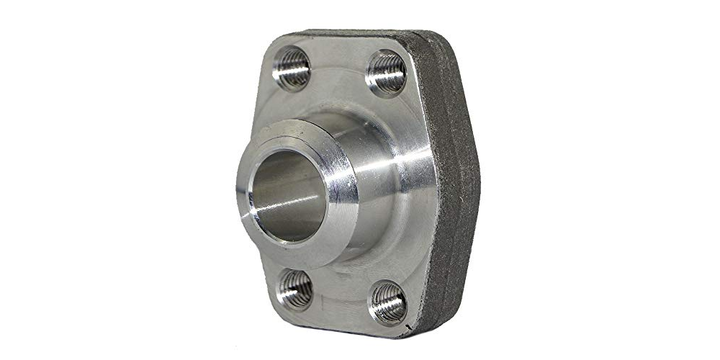

Oleo Tecnica Carbon Steel 4-bolt Flange w/ Metric Bolt Thread SAE-H-IT-BW-6-F-30-90-65
Oleo Tecnica Carbon Steel 4-bolt Flange w/ Metric Bolt Thread SAE-H-IT-BW-6-F-30-90-65
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-6-F-30-90-65 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
3"
Configuration
Flat Side
For Pipe Schedule
SCH160
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
62
Series
6000
Working Pressure
200 - 414
bar
Standard
Sae J518
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M30
This spec is not available in the specification table.
Screw Length
100
mm
This spec is not available in the specification table.
Screw Torque (NM)
650
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel, 4-bolt Flange w/ Metric Bolt Thread, Sae J518
Oleo Tecnica Carbon Steel ST52.3 Sae Flange Code 62 6000 Psi, 3 Butt Weld SCH160 Flat Side, 4-bolt Flange w/ Metric Bolt Thread, Sae J518
Technical Spec
- Netto Weight 11.5 KG
- Unit Dimension 12.4 X 5 X 13.4 CM
- Height Dimension 13.400
- Length Dimension 12.400
- Width Dimension 5.000
- Dimension uom 12.400
US $ 62.77
Quantity:
EA
