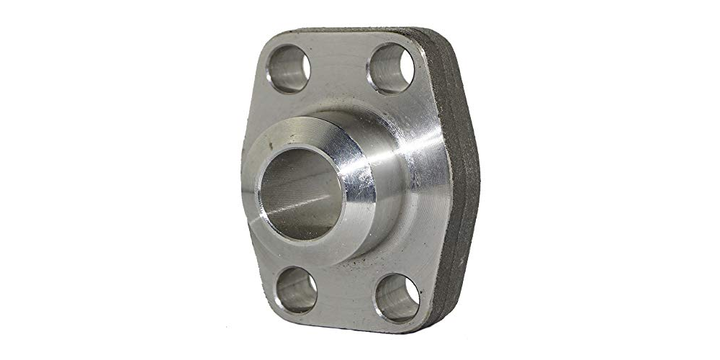

Oleo Tecnica Carbon Steel ST52.3 Sae Flange 4-bolt Flange w/ Nbr O-ring SAE-H-IT-BW-3-O-14-50-34
Oleo Tecnica Carbon Steel ST52.3 Sae Flange 4-bolt Flange w/ Nbr O-ring SAE-H-IT-BW-3-O-14-50-34
Brand: | Oleo Tecnica |
Model: | SAE-H-IT-BW-3-O-14-50-34 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Types
4-Bolt Hydraulic Flange
Connection Style
Butt Weld
Flange Size
1 1/2"
Configuration
O-Ring Side
For Pipe Schedule
SCH160
Material
ST52.3 Carbon Steel
No. of Bolt Holes
4
Code
61
Series
3000
Working Pressure
34 - 345
bar
Standard
Sae J518
Sold with
O-Ring
This spec is not available in the specification table.
Screw Type
Socket Head Cap Screw
This spec is not available in the specification table.
Screw Size
M12
This spec is not available in the specification table.
Screw Length
45
mm
This spec is not available in the specification table.
Screw Torque (NM)
130
This spec is not available in the specification table.
O-ring material
NBR
This spec is not available in the specification table.
Product Description
Oleo Tecnica Carbon Steel ST52.3 Sae Flange Code 61 3000 Psi, 1 1/2 Butt Weld SCH160 O-ring Side, 4-bolt Flange w/ Nbr O-ring, Sae J518 (for 50MM Od Tube)
Carbon Steel ST52.3 Sae Flange Code 61 3000 Psi, 1 1/2 Butt Weld SCH160 O-ring Side, 4-bolt Flange w/ Nbr O-ring, Sae J518 (for 50MM Od Tube)
About this item
- SAE Code 61 with optimum working pressure of 3000 PSI
- Body made via normalized forgings which is strong and durable
- Made of ST52.3 steel material
- Part connect with counterflange (flat side) to make a complete set
- Butt weld (weld-on) connection for pipes of various size and thickness
Technical Spec
- Netto Weight 1.000 KG
- Height Dimension 9.300
- Length Dimension 7.800
- Width Dimension 4.400
- Dimension uom 7.800
US $ 13.58
