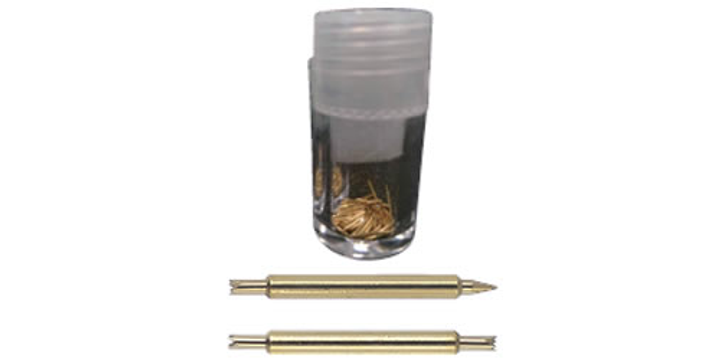

Misumi RNPA085-BJ RNPA085 Series Double Tipped Contact Probes, Min Pitch1.0mm
Misumi RNPA085-BJ RNPA085 Series Double Tipped Contact Probes, Min Pitch1.0mm
Brand: | MISUMI |
Model: | RNPA085-BJ |
Specifications
Please select at least one specification below.
Type
Double Tipped Probe
Plunger OD
0.5
mm
Plunger Tip Shape
B (L) / J (R)
Barrel Receptacle OD
0.85
mm
Barrel Receptacle Length
4
mm
Plunger Length
0.6 (L) / 1.1 (R)
mm
Full Stroke
1.1
mm
Plunger Material
BeCu
Barrel Receptacle Material
Phosphor Bronze
2/3 Stroke Spring Pressure
31 gf
This spec is not available in the specification table.
Min. Mounting Pitch
1
mm
This spec is not available in the specification table.
Allowable Current
5
A
This spec is not available in the specification table.
Resistance
50 mΩ
This spec is not available in the specification table.
Product Description
US $ 41.28
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 41.28 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
