Misumi GCO20-5-6.35 Oldham Couplings Set Screw Type

View Brand

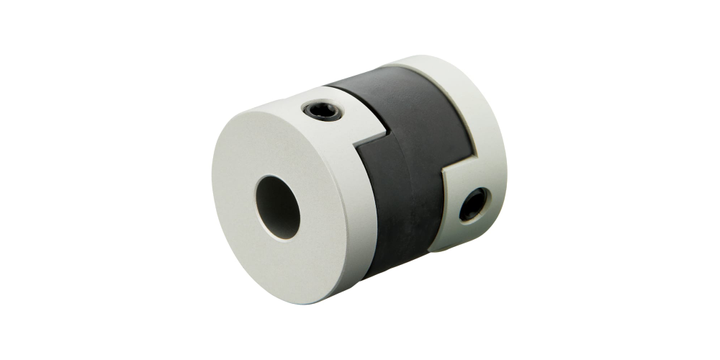

Misumi GCO20-5-6.35 Oldham Couplings Set Screw Type

Brand:	MISUMI
Model:	GCO20-5-6.35

Specifications

View other Shaft Couplings dimensions or variations

Length

23 mm

Body Material

Aluminum Alloy

Shaft Bore Diameter 1

5 mm

Shaft Bore Diameter 2

6.35 mm

Outer Diameter

20 mm

Allowable Torque Range

1.01 - 3.00 Nm

Shaft Tightening Method

Set Screw

Shaft Bore Shape

Standard Bore

Allowable Lateral Misalignment [mm]

Allowable Lateral Misalignment Range [mm]

1.1 - 3.0

Allowable Angular Misalignment [deg]

deg

Max. Rotational Speed [r/min]

10000

Series Name

Oldham

Allowable Misalignment

Angular Misalignment / Eccentricity

Max. Rotational Speed Range

4001 - 10000 r/min

Product Description

US $ 14.42

Units	Discount	Unit Price
1	-	US $ 14.42

Quantity:

This item is sold by

SG-4887073424

Shop by Specification Table

You can find items with similar specifications from the table below.

Shaft Couplings

61 Items

Length

37.2 mm, 18.5 mm, 31 mm, 23 mm, 28.5 mm

Shaft Bore Diameter 1

19 mm, 5 mm, 4 mm, 3 mm, 6 mm

Shaft Bore Diameter 2

14 mm, 11 mm, 22 mm, 6.35 mm, 12 mm

Outer Diameter

3-19/64 in, 4-15/32 in, 3-47/64 in, 1-11/32 in, 1-3/4"

Allowable Torque Range

5.01 - 10.00 Nm, 0.05 - 1.00 Nm, 20.01 - 50.00 Nm, 1.01 - 3.00 Nm, 3.01 - 5.00 Nm

Maximum Torque

25 in-lb, 940 in-lb, 475 in-lb, 1,600 in-lb, 70 in-lb

Coupling Outside Diameter

1-3/4 in, 1-1/2 in, 11/16 in, 1-5/16 in, 2-1/2 in
