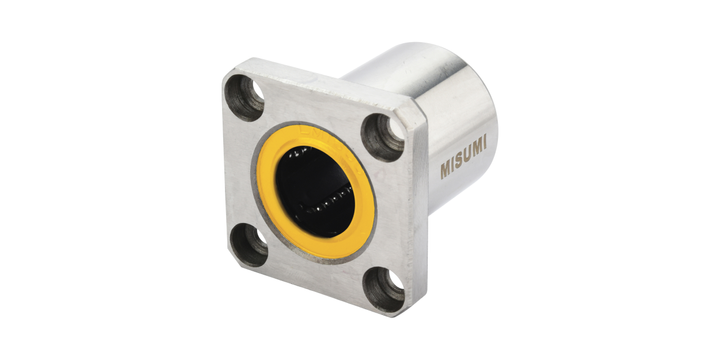

Misumi E-LBKZ16LUU Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Misumi E-LBKZ16LUU Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole
Brand: | MISUMI |
Model: | E-LBKZ16LUU |
Specifications
Please select at least one specification below.
Type
Flange
Accuracy
Standard Grade
Ball Material
SUJ2 Equivalent
Outer Diameter
28
mm
Overall Length
70
mm
Inscribed Circle Diameter
16
mm
Style of Mounting Hole
Opposite Couterbored Hole
Ball Recirculating Type
Double
Eccentricity
0.03 µm
Flange Shape
Square Flange
Basic Load Rating: Static Load
2350 N
Motion
Linear
Basic Load Rating: Dynamic Load
1230 N
Product Description
US $ 8.54
Quantity:
EA
Stock:
50 EA in stock
In Seller's Warehouse
