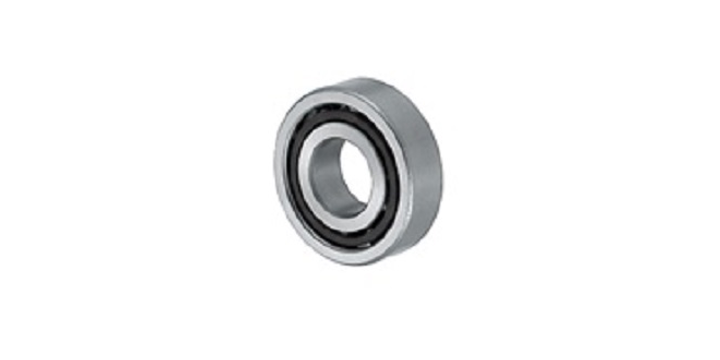

Misumi E-B7216SU Angular Contact Ball Bearings Single Row Universal Combination
Specifications
Please select at least one specification below.
Bearing Type
Angular Contact Ball (Single Row)
Bore Diameter
80 mm
Outside Diameter
140 mm
Width
26 mm
Bearing Material
SUJ2 Equiv.
Measurement System
Metric System
This spec is not available in the specification table.
Weight
1500 g
This spec is not available in the specification table.
Environment Specification
Standard
This spec is not available in the specification table.
Load Direction
Radial / Thrust Load, Axial
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
85300 N
This spec is not available in the specification table.
Allowable Rotational Speed [rpm]
5400 rpm
This spec is not available in the specification table.
Precision (JIS)
Class 4
This spec is not available in the specification table.
Outer Ring Type
Flat
This spec is not available in the specification table.
Number of Raceway Ring Rows
Single Row
This spec is not available in the specification table.
Rolling Element Material
[Steel] SUJ2 Equiv.
This spec is not available in the specification table.
Basic Load Rating Cor (Static) [N]
71500 N
This spec is not available in the specification table.
Product Description
US $ 63.81
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 63.81 |
Quantity:
EA
Stock:
10 EA in stock
