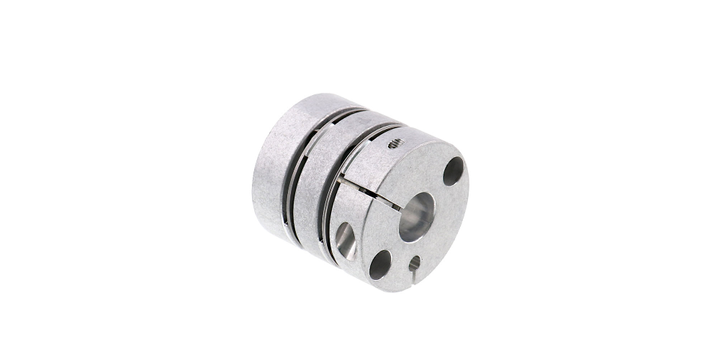

Misumi C-SCPW21-8-8 Disc Couplings High Regidity Double Disc, Clamping Type
Misumi C-SCPW21-8-8 Disc Couplings High Regidity Double Disc, Clamping Type
Brand: | MISUMI |
Model: | C-SCPW21-8-8 |
Specifications
Please select at least one specification below.
Length
24.5 mm
Body Material
Aluminum Alloy
Shaft Bore Diameter 1
8 mm
Shaft Bore Diameter 2
8 mm
Outer Diameter
21 mm
Allowable Torque Range
0.05 - 1.00 Nm
Shaft Tightening Method
Fastening Bolt
Shaft Bore Shape
Standard Bore
Single/Double
Double
Allowable Lateral Misalignment [mm]
0
mm
This spec is not available in the specification table.
Allowable Lateral Misalignment Range [mm]
0.02 - 0.2
mm
This spec is not available in the specification table.
Allowable Angular Misalignment [deg]
1
deg
This spec is not available in the specification table.
Max. Rotational Speed [r/min]
10000
This spec is not available in the specification table.
Series Name
Disc
This spec is not available in the specification table.
Allowable Misalignment
Angular Misalignment / Eccentricity / Axial Misalignment
This spec is not available in the specification table.
Max. Rotational Speed Range
4001 - 10000 r/min
This spec is not available in the specification table.
Allowable Axial Misalignment
0
mm
This spec is not available in the specification table.
Product Description
US $ 35.99
Quantity:
EA
Stock:
292,360 EA in stock
