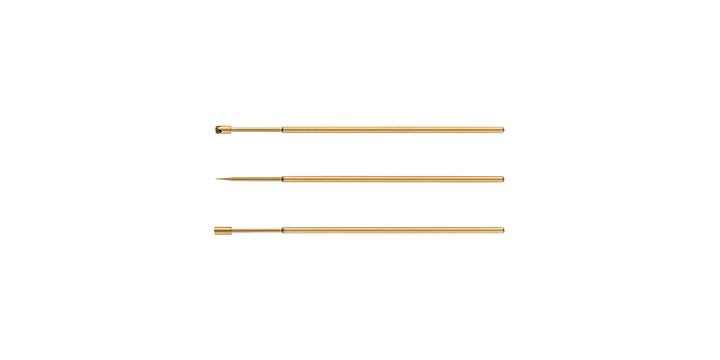

Misumi C-NP45SF-D NP45 Series Contact Probes Min Pitch 1.7mm, Stroke 5.0mm
Misumi C-NP45SF-D NP45 Series Contact Probes Min Pitch 1.7mm, Stroke 5.0mm
Brand: | MISUMI |
Model: | C-NP45SF-D |
Specifications
Please select at least one specification below.
Type
Contact Probe
Plunger OD
1.3
mm
Initial Spring Pressure
10 gf
Plunger Tip Shape
D Type
Barrel Receptacle OD
1.02
mm
Barrel Receptacle Length
24.6
mm
Plunger Length
7
mm
Full Stroke
5.0
mm
Plunger Material
C1730B
Barrel Receptacle Material
Phosphor Bronze
2/3 Stroke Spring Pressure
50 gf
This spec is not available in the specification table.
Min. Mounting Pitch
1.7
mm
This spec is not available in the specification table.
Allowable Current
3
A
This spec is not available in the specification table.
Resistance
60 mΩ
This spec is not available in the specification table.
Product Description
US $ 31.67
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 31.67 |
Quantity:
EA
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
