Specifications
Please select at least one specification below.
Outer Diameter
16
mm
Width
11
mm
Allowable Rotational Speed
14000
rpm
Size Standards
Metric System
Roller Type
Crowned Type
This spec is not available in the specification table.
Roller Follower Inner Diameter
5
mm
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
3.15 kN
This spec is not available in the specification table.
Basic Load Rating Cor (Static)
3.3 kN
This spec is not available in the specification table.
Roller Follower Type
Solid
This spec is not available in the specification table.
Product Description

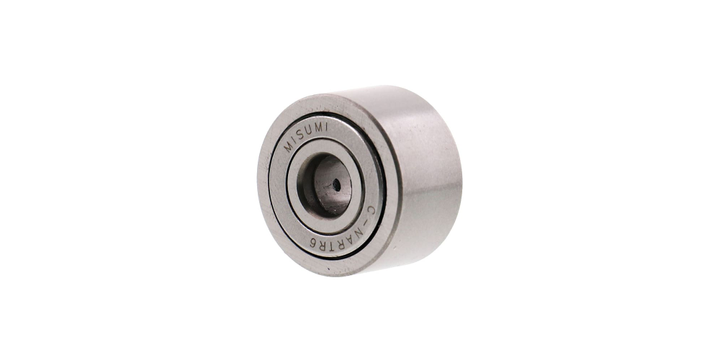

Misumi C-NARTR5 Non Separate - Roller Followers
Outer Dia. D(Ø) 16
Product Category Roller Followers
Width B(mm) 11
Roller Type [Spherical Outer Ring] Crowned Type
Roller Follower Inner Dia. D(mm) 5
Material [Carbon Steel] SUJ2 Equivalent
Size Standards [Metric System] Metric System
Roller Follower Type Solid
Roller Lining Not Provided
Shaft Not Provided
Roller Guiding Method With Retainer
Inner Ring Provided
US $ 4.33
Lead time of 5 working days required.
Item will be ready to dispatch within the lead time specified.
Quantity:
EA
Stock:
30 EA in stock
In Seller's Warehouse
This item is sold by
SG-4887073424
