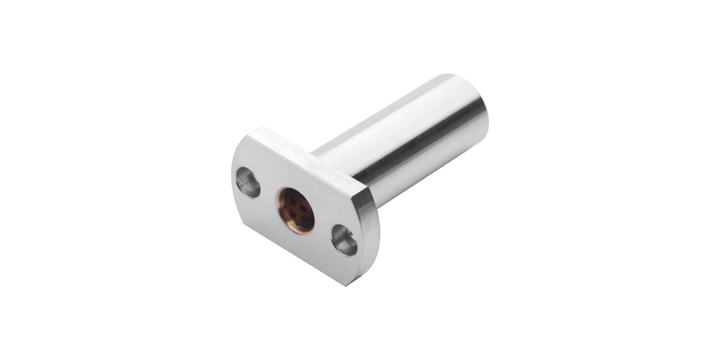

Misumi C-MFN16-37 Oil Free Bushing Housing Units Compact Flanged
Misumi C-MFN16-37 Oil Free Bushing Housing Units Compact Flanged
Brand:
MISUMI
Model:
C-MFN16-37
Specifications
infotip-icon
View other Oil Free Bushings dimensions or variations
Please select at least one specification below.
Type
Housing Unit
Operating Temperature Range
-40 - 200
C
Inner Diameter
16
mm
Outer Diameter
28
mm
Length
37
mm
Environment
Standard / In Oil
Metal Type
Special Bronze Cast
Maximum Allowable Velocity
1 m/s
Max. Allowable Surface Pressure
29 N/m²
Case Material
Aluminum Alloy
This spec is not available in the specification table.
Mounting Shaft Fits
g6 / f8
This spec is not available in the specification table.
Housing Unit Type
Compact Flange
This spec is not available in the specification table.
Max. Allowable PV Value Range
1.1 - 2.0
This spec is not available in the specification table.
Product Description
US $ 14.99
Quantity:
EA
Stock:
10 EA in stock
location
In Seller's Warehouse
