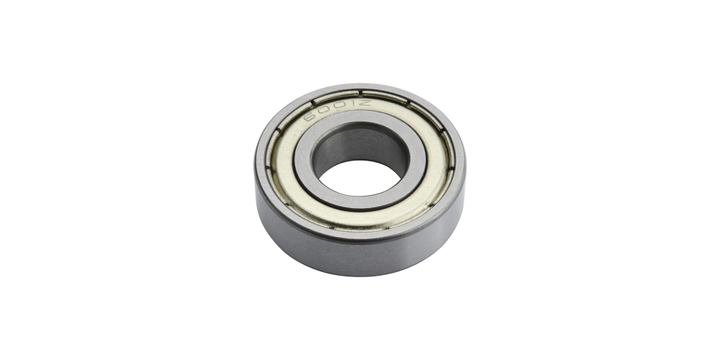

Misumi C-E6001ZZC3 Ball Bearings C3 Clearance
Brand: | MISUMI |
Model: | C-E6001ZZC3 |
Specifications
Please select at least one specification below.
Bearing Type
Ball
Bore Diameter
12 mm
Outside Diameter
28 mm
Width
8 mm
Bearing Material
SUJ2 Equiv.
Measurement System
Metric System
This spec is not available in the specification table.
Weight
22 g
This spec is not available in the specification table.
Environment Specification
Standard / Dust Resistant
This spec is not available in the specification table.
Load Direction
Radial
This spec is not available in the specification table.
Basic Load Rating Cr (Dynamic)
5100 N
This spec is not available in the specification table.
Allowable Rotational Speed [rpm]
8000 rpm
This spec is not available in the specification table.
Precision (JIS)
Class 0
This spec is not available in the specification table.
Outer Ring Type
Flat
This spec is not available in the specification table.
Number of Raceway Ring Rows
Single Row
This spec is not available in the specification table.
Rolling Element Material
[Steel] SUJ2
This spec is not available in the specification table.
Basic Load Rating Cor (Static) [N]
2370 N
This spec is not available in the specification table.
Product Description
US $ 0.85
Quantity:
EA
Stock:
59 EA in stock
In Seller's Warehouse
This item is sold by
SG-4887073424
