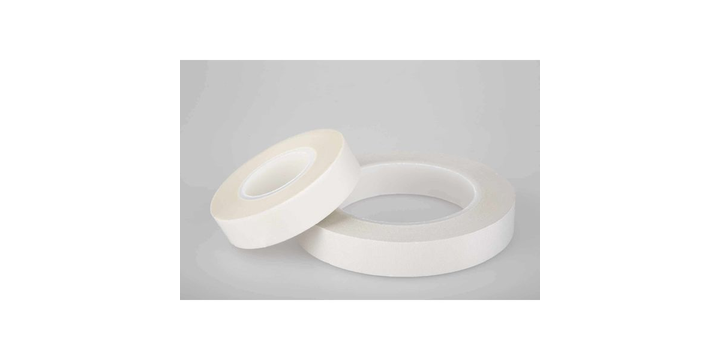

GLASS CLOTH SILICONE TAPE

Features
Manufactured from 5.1 mils electrical grade fiberglass cloth with high performance silicone adhesive.
Tough abrasive resistance has excellent mechanical and electrical properties.
Highly conformable
No corrosion
UL approval
Flame retardant
High tensile strength.
Meet MIL-I-19166C Type 7 MIL.

Application
For use in most high temperature industrial applications.

We can slit to ANY width

Technical Data
Adhesive : Silicone
Carrier : Fiberglass Cloth
Carrier Thickness : 5.0mil/ 0.125mm
Total Thickness : 7.6 mil/ 0.190mm
Initial Ball Tack : #16
Adhesion to Steel : 9.8 N/25mm
Tensile Strength : 588 N/25mm
Elongation : 9%
Dielectric Strength : 4.0 kV
Shear Strength : 60°C x 25mm x 1kg / 60 mins
Class of Insulation : H / 200 UL
Range of Temperature : -73 ~ 260°C

Test Method
ASTM D 1000, JIS Z0237, ASTM D 149 , UL 510
