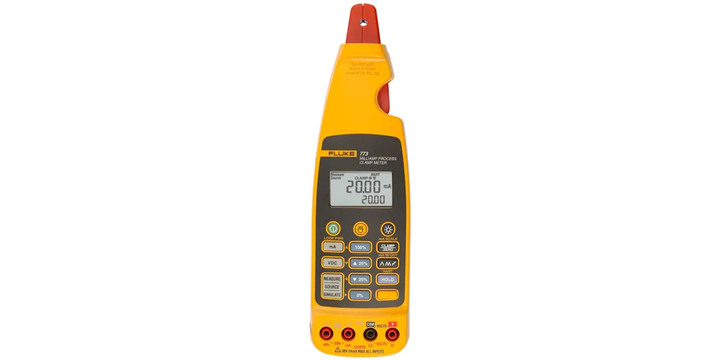

Fluke 773 Clamp Meter, 100mA Dc

• Absolute Maximum DC Current Measurement 100mA dc
• Absolute Maximum DC Voltage Measurement 30V dc
• Model Number 773
• DC Current Measurement Resolution 10µA
• Best DC Current Accuracy ±1% + 5 Digits
• Clamp Meter Type DC Current Clamp Meter
• Jaw Capacity Busbars 4.5mm
• Best DC Voltage Accuracy 0.2% + 2 Digits
• Functions Measured DC Voltage
• Height 41mm
• Minimum Operating Temperature -10°C
• DC Voltage Measurement Resolution 10mV
• Dimensions 248 x 76 x 41mm
• DC Current Measurement Range 0 → 100 mA dc
• Length 248mm
• Width 76mm
• Power Source Battery
• Maximum Operating Temperature +50°C
• Display Type LCD
• Battery Type AA
• Weight 420g
• Maximum Conductor Size 4.5mm
• Battery Life 12 h

Features and Benefits

• Automatic power-off feature to save battery life
• Hold function captures measurements on screen for convenient recording
• Included carry case makes it easy to transport
• Wide operating temperature range of -10°C to +50°C for use in harsh settings
• IP40 rating means it's finger-safe and protected against objects larger than 1mm
• Measure 4 to 20 mA signals without breaking the loop
• Source/measure DC voltage to verify power supplies or I/O signals

Applications

• Factory testing and diagnostics
• Automotive manufacturing
• Oil and gas industries
