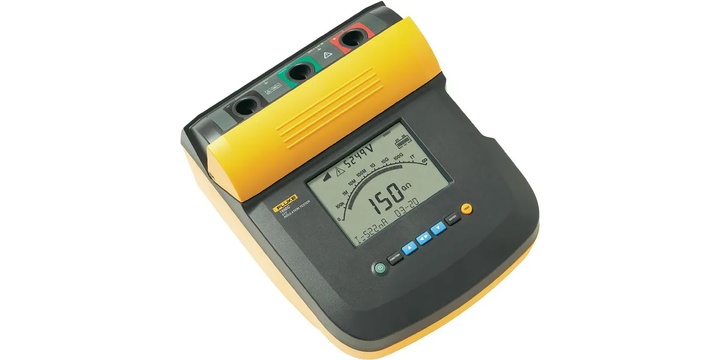

Fluke 1550C/KIT Insulation Tester, 250V Min, 5000V Max, 1TΩ Max, Cat Iii 1000V
Fluke 1550C/KIT Insulation Tester, 250V Min, 5000V Max, 1TΩ Max, Cat Iii 1000V
Brand:
FLUKE
Model:
1550C/KIT
Product Description

Fluke 1550C/KIT Insulation Tester, 250V Min, 5000V Max, 1TΩ Max, Cat Iii 1000V

  • Model Number p 1550C
  • Tester Type Insulation Tester
  • Maximum Test Voltage 5000V
  • Minimum Test Voltage 250V
  • Maximum Insulation Resistance Measurement 1TΩ
  • Display Type LCD
  • Test Current 1 nA → 2 mA
  • Power Source Battery
  • Battery Type Rechargeable Lead Acid (Yuasa NP2.8-12)
  • Battery Life 750 Tests
  • Minimum Operating Temperature -20°C
  • Maximum Operating Temperature +50°C
  • Safety Category Level CAT III, CAT IV
  • Safety Category CAT III 1000 V, CAT IV 600V
  • Safety Category Voltage 600 V, 1000 V
  • Weight 3.7kg
  • Plug Type Type G - British 3-pin
  • Height 160mm
  • Dimensions 277 x 269 x 160mm
  • Length 277mm
  • Width 269mm

The Fluke 1T ohm electrical insulation tester is a perfect tool for preventive or predictive maintenance programs. It is designed to identify potential equipment failures before they occur. Remote operation lets you spend as little time as possible in potentially hazardous zones. It is a high voltage insulation tester, ideal for testing high voltage equipment including switchgear, motors, generators and cables. The testing voltage ranges between 250V and 5000V. This device is Rechargeable Lead Acid (Yuasa NP2.8-12) battery-powered. The kit includes a hard case, NIST traceable certificate of calibration and additional ruggedized crocodile clips.

Supplied with Test cables & crocodile clips, infrared USB adaptor, AC power cord, 12V lead acid battery (fitted), FlukeView Forms Basic Software, user manual on CD-ROM.
Fluke 1550 & 1555 kits include case, NIST traceable certificate of calibration and additional ruggedized crocodile clips.

Features and Benefits

99 measurements storage and recall and PC interface
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI)
Capacitance and leakage current measurement
Guard system eliminates the effect of surface leakage current on high resistance measurements
Large LCD display with analogue bar graph
Long life lead acid battery with over 750 tests between charges
Ramp function for breakdown testing
Timer settings up to 99 minutes for timed tests
Voltage breakdown detection alerts and voltage reading up to 600VAC or DC for increased user safety

Certifications

CAT III 1000V
CAT IV 1000V
CE certified
CSA certified
EN 61010 safety rating
IEEE 43-2000
IP40 rated
