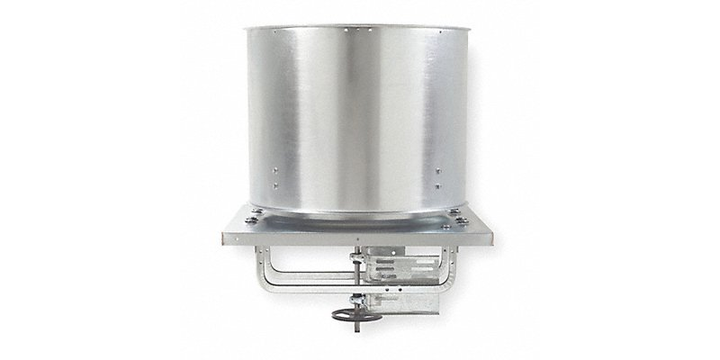

Dayton 7HZ40 Steel 63 Dia 67 L 45 H Roof Fan W.motor
Specifications
Please select at least one specification below.
Motor Horsepower
3 hp
Blade Diameter
54 in
Blade Material
Steel
Assembled
Unassembled
Drive Type
Belt Drive
Nominal Voltage
208-230/460V AC
Number of Blades
5
Includes Drive Package
Yes
Phase
3
Exhaust Airflow @ 0.000 in SP - Range
20,000 to 40,000 cfm
Standards
UL/cUL 705, AMCA Standard 301
Motor Enclosure Design
Open Dripproof (ODP)
Overall Width
66-1/2 in
Overall Height
45 in
Maximum Inlet Air Temperature
120 Degrees F
Base Dimension
66-1/2 in Square
For Air Type
Clean Air
Maximum Static Pressure
1/4 in wc
Product Description
US $ 6,711.39
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 6,711.39 |
Quantity:
EA
Lead time of 6 working days required.
Item will be ready to dispatch within the lead time specified.
