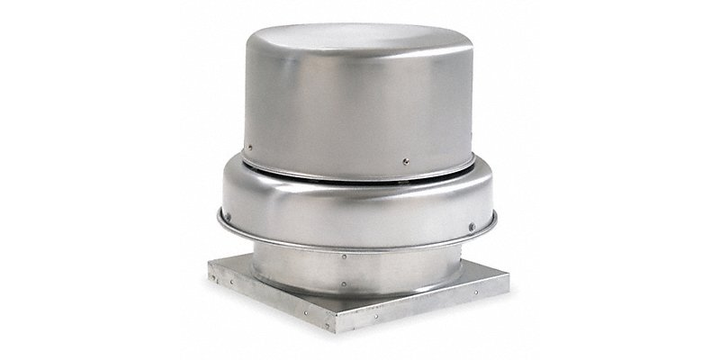

Dayton 7AF14 Alu 35.5 Dia 36.2 H Roof Fan W.motor
Specifications
Please select at least one specification below.
Motor Horsepower
3/4 hp
Assembled
Unassembled
Drive Type
Belt Drive
Nominal Voltage
230/460V AC
Includes Drive Package
Yes
Phase
3
Exhaust Airflow @ 0.000 in SP - Range
2,000 to 4,999 cfm
Standards
AMCA Sound and Air, UL
Wheel Diameter
18-1/2 in
For High-Static Pressure Applications
No
High-Efficiency Motor
No
Motor Enclosure Design
Totally Enclosed Fan-Cooled (TEFC)
Number of Speeds
1
Exhaust Airflow @ 0.500 in SP - Range
2,000 to 4,999 cfm
Overall Width
35-1/2 in
Overall Length
35-1/2 in
Overall Height
36-1/8 in
Maximum Inlet Air Temperature
180 Degrees F
Base Dimension
30 in Square
For Air Type
Flammable Vapor
Product Description
US $ 2,650.93
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 2,650.93 |
Quantity:
EA
Lead time of 6 working days required.
Item will be ready to dispatch within the lead time specified.
This item is sold by
SG-4667031604
