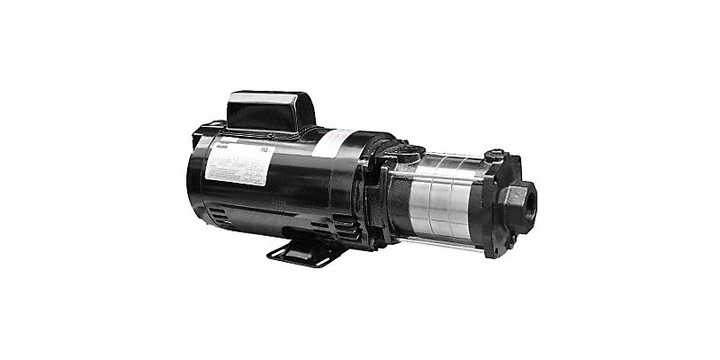

Dayton 5UXF4 Booster Pump 1/2HP 1 Phase 115/230V Ac
Dayton 5UXF4 Booster Pump 1/2HP 1 Phase 115/230V Ac
Brand:
DAYTON
Model:
5UXF4
Specifications
infotip-icon
View other Water Pumps dimensions or variations
Please select at least one specification below.
Intake Type
NPT
Compatible Intake Pipe Size
3/4"
Nameplate Voltage
115/230 V AC
Phase
Single
Horsepower
1/2 hp
Pump Housing Material
Cast Iron
Compatible Discharge Pipe Size
3/4"
Motor Enclosure
Open Dripproof (ODP), Open Dripproof
This spec is not available in the specification table.
Flow Rate @ 30 psi
17.7 gpm
This spec is not available in the specification table.
Flow Rate @ 20 psi
19 gpm
This spec is not available in the specification table.
Shut Off Pressure (Maximum)
77 psi
This spec is not available in the specification table.
Number of Stages
4
This spec is not available in the specification table.
Flow Rate @ 40 psi
16 gpm
This spec is not available in the specification table.
Flow Rate @ 50 psi
13.5 gpm
This spec is not available in the specification table.
Flow Rate @ 60 psi
10 gpm
This spec is not available in the specification table.
Flow Rate @ 70 psi
5 gpm
This spec is not available in the specification table.
