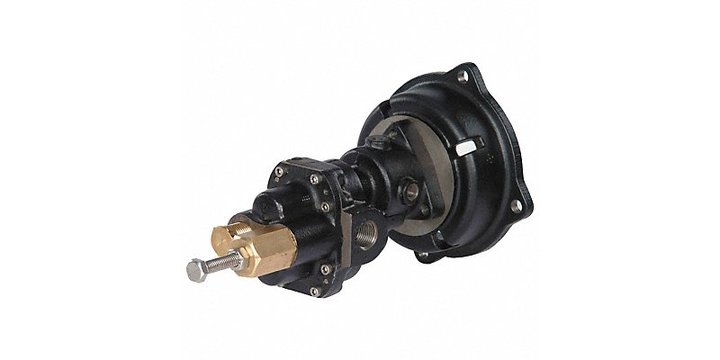

Dayton 4KHC9 Rotary Gear Pump Head 1 in 1 1/2 Hp
Dayton 4KHC9 Rotary Gear Pump Head 1 in 1 1/2 Hp
Brand:
DAYTON
Model:
4KHC9
Specifications
infotip-icon
View other Pumps Accessories dimensions or variations
Please select at least one specification below.
Gear Design
Spur
Viscosity - Maximum
550 SUS
Connection Size
1 in
Flow Rate @ 100 psi
23.9 gpm
Seal Material
Ceramic, Stainless Steel, Carbon, Buna-N
Suction Lift - Maximum
19.5 ft
Required Horsepower
3 hp
Seal Type
Mechanical
Body Material
Cast Iron
Operating Pressure - Maximum
125 psi
Gear Material
Steel
Connection Type
NPT
Includes
Relief Valve
This spec is not available in the specification table.
Motor Mounting Type
Close Coupled
This spec is not available in the specification table.
Compatible Motor Frame
182TC/184TC
This spec is not available in the specification table.
Operating Temperature Range
32 Degrees F to 280 Degrees F
This spec is not available in the specification table.
O-Ring Material
Viton
This spec is not available in the specification table.
