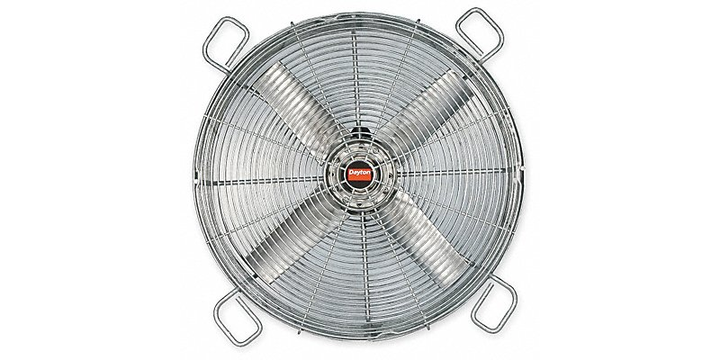

Dayton 13F058 Trnsfrmr Coolng Fan Blade Dia24 6800CFM
Product Description
- Blade Diameter: 24 in
- Air Flow: 6,800 cfm
- Voltage: 208-230/460V AC, 60 Hz
- Phase: 3
- Fan Mounting Type: Guard Mount
- Amps: 1.5-1.6/0.8 A
- RPM: 1,140
- Motor HP: 1/3 hp
- Max Ambient Temperature: 104°F
- Bearing Type: Ball
- Number of Blades: 4
- Blade Material: Cast Aluminum
- Fan Cord Length: 15 ft
- Guard Material: Steel
- Guard Dimensions: 27 in Height x 27 in Width x 13 5/16 in Depth
- Mounting Eye O.C.: 19 7/8 in
- Motor Enclosure: Totally Enclosed Air-Over (TEAO)
- Motor Insulation Class: B
- Frame: 48Y
- Mount Type: Yoke Mount
US $ 1,218.32
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | US $ 1,218.32 |
Quantity:
EA
Lead time of 15 working days required.
