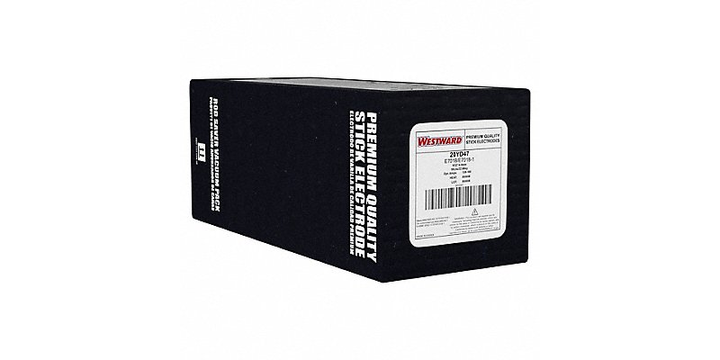

Westward 20YD47 Welding Electrode E7018 5/32in.D 50lb
Specifications
Please select at least one specification below.
Overall Length
14 in
Container Type
Hermetically-Sealed Can
Tensile Strength (Minimum Required)
70 ksi
Welding Current Designation
AC, DCEP
For Material Type
Carbon Steel to Carbon Steel, Low-Alloy Steel to Low-Alloy Steel, Carbon Steel to Low-Alloy Steel
Yield Strength (Minimum Required)
58 ksi
Series
E7018-1
For Welding Position
Flat, Vertical-Down, Overhead, Horizontal, Vertical-Up
Standards
AWS A5.1
Weight
50
AWS Classification
E7018, E7018, E7018-1, E7018-1
This spec is not available in the specification table.
Maximum Yield Strength (As Welded)
50 to 59 ksi
This spec is not available in the specification table.
Overall Diameter
5/32 in
This spec is not available in the specification table.
Maximum Tensile Strength (As Welded)
70 to 79 ksi
This spec is not available in the specification table.
Product Description
RM 1,011.76
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 1,011.76 |
Quantity:
EA
Lead time of 20 working days required.
Item will be ready to dispatch within the lead time specified.
