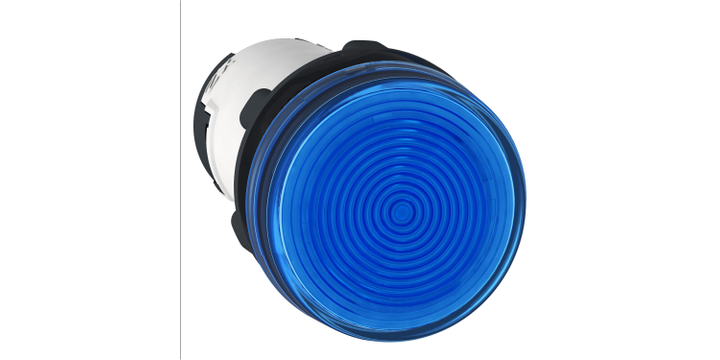

Schneider Electric XB7EV06MP Monolithic Pilot Light, Harmony XB7, Plastic, Blue, 22mm, Integral Led, 230...240V Ac
Schneider Electric XB7EV06MP Monolithic Pilot Light, Harmony XB7, Plastic, Blue, 22mm, Integral Led, 230...240V Ac
Brand: | SCHNEIDER ELECTRIC |
Model: | XB7EV06MP |
Specifications
Please select at least one specification below.
Width
29 mm
Depth
54 mm
Standards
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-1
IEC 60947-5-1
UL 508
JIS C8201-1
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Height
29 mm
IP Degree of Protection
IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Shock Resistance
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
[Us] Rated Supply Voltage
230...240 V AC 50/60 Hz
Mounting Diameter
22 mm
Shape Of Signaling Unit Head
Round
Cap/Operator Or Lens Colour
Blue
Current Consumption
16...20 mA
Product or component type
Pilot light
This spec is not available in the specification table.
Range of product
Harmony XB7
This spec is not available in the specification table.
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-1
This spec is not available in the specification table.
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Overvoltage category
Class II conforming to IEC 60536
This spec is not available in the specification table.
Ambient air temperature for storage
-40…70 °C
This spec is not available in the specification table.
Tightening torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
Device presentation
Monolithic product
This spec is not available in the specification table.
Device mounting
Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
This spec is not available in the specification table.
Fixing Mode
Fixing nut beneath head: 2…2.4 N.m
This spec is not available in the specification table.
Fixing Center
>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
This spec is not available in the specification table.
Electromagnetic Compatibility
Disturbing field emission class B conforming to IEC 55011
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Supply Voltage Limits
195…264 V AC
This spec is not available in the specification table.
Service Life
70000 h at rated voltage and 25 °C
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 4 conforming to UL 50 E
NEMA 12 conforming to UL 50 E
This spec is not available in the specification table.
Light Source
LED
This spec is not available in the specification table.
Bulb Base
Integral LED
This spec is not available in the specification table.
Terminals Description Iso N°1
(X1-X2)PL
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Signalling Type
Steady
This spec is not available in the specification table.
Product Description
RM 483.44
Quantity:
EA
MOQ of 10 EA
Bundle of 1 EA
This item is sold by0
Schneider Electric
