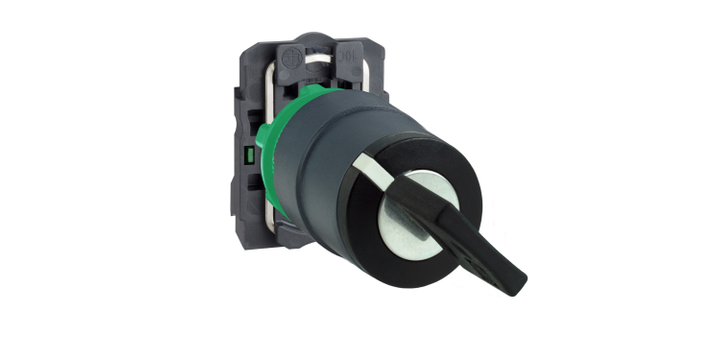

Schneider Electric XB5AG21 Key Switch Selector, Harmony XB5, Plastic, Black, 22mm, Key 455, 2 Positions, Stay Put, 1 No
Schneider Electric XB5AG21 Key Switch Selector, Harmony XB5, Plastic, Black, 22mm, Key 455, 2 Positions, Stay Put, 1 No
Brand: | SCHNEIDER ELECTRIC |
Model: | XB5AG21 |
Specifications
Please select at least one specification below.
Width
30 mm
Product Or Component Type
Selector switch
Depth
96 mm
Standards
UL 508
CSA C22.2 No 14
IEC 60947-5-1
IEC 60947-5-4
IEC 60947-1
JIS C8201-5-1
JIS C8201-1
[Ui] Rated Insulation Voltage
600 V (pollution degree 3) conforming to IEC 60947-1
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Height
42 mm
Ip Degree Of Protection
IP69
IP69K
IP66 conforming to IEC 60529
IP67
Ambient Air Temperature For Operation
-40…70 °C
Contacts Material
Silver alloy (Ag/Ni)
[Ie] Rated Operational Current
3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Contacts Type And Composition
1 NO
Shock Resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Mounting Diameter
22.5 mm
Shape Of Signaling Unit Head
Round
Device Short Name
XB5
This spec is not available in the specification table.
Range Of Product
Harmony XB5
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
6 kV conforming to IEC 60947-1
This spec is not available in the specification table.
Mechanical Durability
1000000 cycles
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…70 °C
This spec is not available in the specification table.
Electrical Durability
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
This spec is not available in the specification table.
Tightening Torque
0.8…1.2 N.m conforming to IEC 60947-1
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
10 A conforming to IEC 60947-5-1
This spec is not available in the specification table.
Product Certifications
LROS (Lloyds register of shipping)
CSA
DNV
GL
BV
UL
This spec is not available in the specification table.
Ik Degree Of Protection
IK04 conforming to IEC 50102
This spec is not available in the specification table.
Vibration Resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
This spec is not available in the specification table.
Electrical Shock Protection Class
Class II conforming to IEC 60536
This spec is not available in the specification table.
Resistance To High Pressure Washer
7000000 Pa at 55 °C, distance : 0.1 m
This spec is not available in the specification table.
Protective Treatment
TH
This spec is not available in the specification table.
Nema Degree Of Protection
NEMA 13
NEMA 4X
This spec is not available in the specification table.
Terminals Description Iso N°1
(13-14)NO
This spec is not available in the specification table.
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver
This spec is not available in the specification table.
Type Of Operator
stay put
This spec is not available in the specification table.
Operator Profile
key switch
This spec is not available in the specification table.
Contact Operation
Slow-break
This spec is not available in the specification table.
Positive Opening
Without
This spec is not available in the specification table.
Short-Circuit Protection
10 A cartridge fuse type gG conforming to IEC 60947-5-1
This spec is not available in the specification table.
Electrical Reliability
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
This spec is not available in the specification table.
Bezel Material
Dark grey plastic
This spec is not available in the specification table.
Head Type
Standard
This spec is not available in the specification table.
Operator Position Information
2 positions 90°
This spec is not available in the specification table.
Contacts Usage
Standard contacts
This spec is not available in the specification table.
Torque Value
0.14 N.m NO changing electrical state
This spec is not available in the specification table.
Type Of Keylock
Key 455
This spec is not available in the specification table.
Key Withdrawal Position
Left-hand
This spec is not available in the specification table.
Product Description
RM 138.02
