Schneider Electric XB4BV5B3 Pilot Light, Harmony XB4,metal, Green, 22mm, Universal Led, Plain Lens, 400V Ac

View Brand

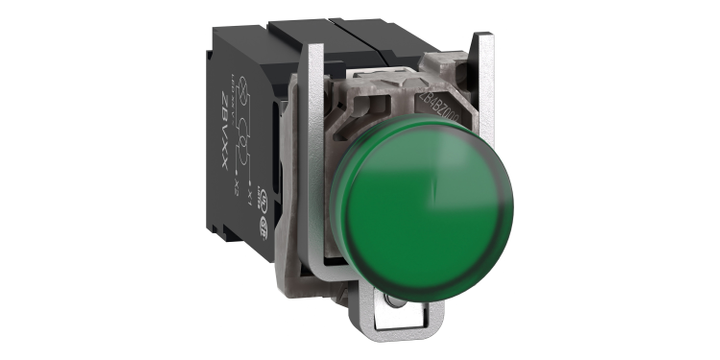

Schneider Electric XB4BV5B3 Pilot Light, Harmony XB4,metal, Green, 22mm, Universal Led, Plain Lens, 400V Ac

Brand:	SCHNEIDER ELECTRIC
Model:	XB4BV5B3

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Pilot Lights dimensions or variations

Standards

IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-5-5 UL 508 IEC 60947-5-4 JIS C8201-1

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

IP Degree of Protection

IP66 conforming to IEC 60529 IP67 IP69 IP69K

Ambient air temperature for operation

-40…55 °C

Shock Resistance

15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

[Us] Rated Supply Voltage

400 V AC at 50 Hz

Mounting Diameter

22.5 mm

Shape Of Signaling Unit Head

Round

Cap/Operator Or Lens Colour

Green

Product or component type

Pilot light

Range of product

Harmony XB4

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

Ambient air temperature for storage

-40…70 °C

Device presentation

Complete product

Product Certifications

CSA UL listed

Ik Degree Of Protection

IK06 conforming to IEC 50102

Vibration Resistance

2 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Resistance To Electrostatic Discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Resistance To Fast Transients

2 kV conforming to IEC 61000-4-4

Supply Voltage Limits

407…423 V AC

Electrical Shock Protection Class

Class I conforming to IEC 60536

Service Life

100000 h at rated voltage and 25 °C

Resistance To High Pressure Washer

7000000 Pa at 55 °C, distance : 0.1 m

Protective Treatment

Nema Degree Of Protection

NEMA 13 NEMA 4X

Light Source

Universal LED

Bulb Base

Integral LED

Signalling Type

Steady

Operator Additional Information

With plain lens

Light Block Supply

Via transformer 1.2 VA 24 V

Cad Overall Width

40 mm

Cad Overall Height

47 mm

Cad Overall Depth

90 mm

Fixing Collar Material

Zamak

Surge Withstand

1 kV conforming to IEC 61000-4-5

Resistance To Electromagnetic Fields

10 V/m conforming to IEC 61000-4-3

Electromagnetic Emission

Class B conforming to IEC 55011

Bezel Material

Chromium plated metal

Head Type

Standard

Product Description

RM 285.40

Quantity:

This item is sold by

Schneider Electric
