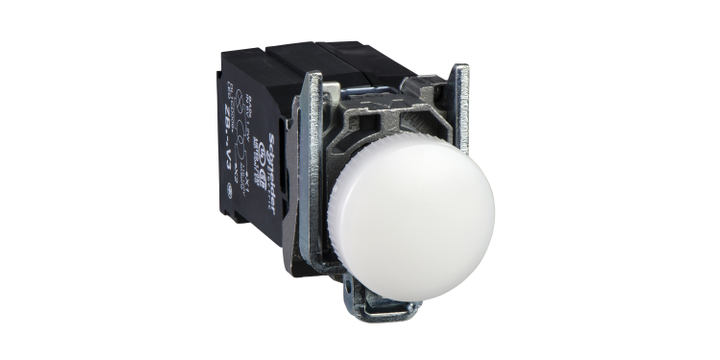

Schneider Electric XB4BV41 Pilot Light, Harmony XB4, Metal, White, 22mm, Plain Lens With BA9s Bulb, 230...240V Ac

Schneider Electric XB4BV41 Pilot Light, Harmony XB4, Metal, White, 22mm, Plain Lens With BA9s Bulb, 230...240V Ac

Brand:	SCHNEIDER ELECTRIC
Model:	XB4BV41

Technical Data Sheets

Product Datasheet

Instruction sheet

Environmental disclosure

Specifications

View other Pilot Lights dimensions or variations

Width

30 mm

Depth

78 mm

Standards

IEC 60947-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-5 JIS C8201-5-1 IEC 60947-5-4 UL 508 JIS C8201-1

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Height

47 mm

IP Degree of Protection

IP66 conforming to IEC 60529 IP67 IP69 IP69K

Ambient air temperature for operation

-40…55 °C

Shock Resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

[Us] Rated Supply Voltage

230...240 V AC at 50/60 Hz

Mounting Diameter

22.5 mm

Shape Of Signaling Unit Head

Round

Cap/Operator Or Lens Colour

White

Product or component type

Pilot light

Range of product

Harmony XB4

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Ambient air temperature for storage

-40…70 °C

Device presentation

Complete product

Product Certifications

CSA UL listed

Ik Degree Of Protection

IK06 conforming to IEC 50102

Vibration Resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Electrical Shock Protection Class

Class I conforming to IEC 60536

Resistance To High Pressure Washer

7000000 Pa at 55 °C, distance : 0.1 m

Protective Treatment

TH

Nema Degree Of Protection

NEMA 13 NEMA 4X

Light Source

Incandescent

Bulb Base

BA 9s

Terminals Description Iso N°1

(X1-X2)PL

Signalling Type

Steady

Operator Additional Information

With plain lens

Light Block Supply

Via integral transformer 1.2 VA 6 V

Fixing Collar Material

Zamak

Bezel Material

Chromium plated metal

Head Type

Standard

Product Description

RM 164.06

Quantity:

EA
