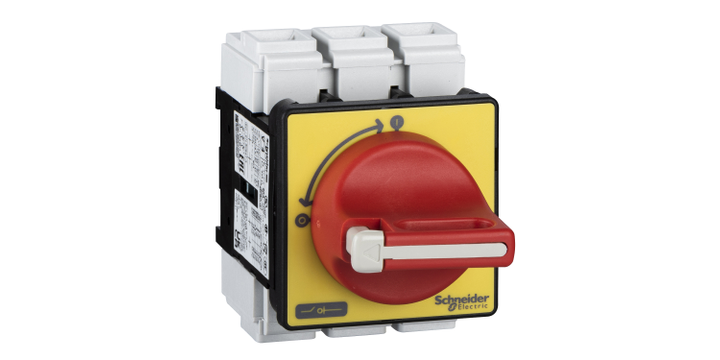

Schneider Electric VCF4 Switch Disconnector,tesys Control,for ON/emergency stop,80A,4 Screws Fixing,for Mounting on Door
Schneider Electric VCF4 Switch Disconnector,tesys Control,for ON/emergency stop,80A,4 Screws Fixing,for Mounting on Door
Brand: | SCHNEIDER ELECTRIC |
Model: | VCF4 |
Specifications
Please select at least one specification below.
Poles
3P
Rated Current
57 A AC-23 Ue: 400 V
Rated Voltage
690 V AC 50/60 Hz
Breaking Capacity
640 A at 400 V (AC-21A)
640 A at 400 V (AC-22A)
640 A at 400 V (AC-23A)
Operating Temperature Range
-20…50 °C
Standards and Certifications
IEC 60947-3
Width
60 mm
Height
83 mm
Ip Degree Of Protection
IP20 conforming to IEC 60529
IP65
Contact Type And Composition
3 NO
Range
TeSys
This spec is not available in the specification table.
Product Name
TeSys VARIO
This spec is not available in the specification table.
Control Type
Rotary handle
This spec is not available in the specification table.
Network Type
DC
AC
This spec is not available in the specification table.
Mounting Method
By 4 screws for handle
This spec is not available in the specification table.
Marking
0 - 1
This spec is not available in the specification table.
Device Short Name
VCF
This spec is not available in the specification table.
Device Composition
Switch
Handle
This spec is not available in the specification table.
Mounting Support
Handle: door
Switch: door
This spec is not available in the specification table.
Performance Level
High performance
This spec is not available in the specification table.
Iec Rated Operational Power In W
18.5 kW at 690 V (AC-3)
15 kW at 230...240 V (AC-3)
22 kW at 400...415 V (AC-3)
30 kW at 500 V (AC-3)
30 kW at 690 V (AC-23A)
37 kW at 500 V (AC-23A)
18.5 kW at 230...240 V (AC-23A)
30 kW at 400...415 V (AC-23A)
This spec is not available in the specification table.
[Ith] Conventional Free Air Thermal Current
80 A
This spec is not available in the specification table.
[Ithe] Conventional Enclosed Thermal Current
63 A
This spec is not available in the specification table.
Making Capacity ( I Rms)
800 A at 400 V AC-21A
800 A at 400 V AC-22A
800 A at 400 V AC-23A
This spec is not available in the specification table.
Rated Conditional Short Circuit Current
10 kA at 400 V - associated fuse 80 A aM
10 kA at 400 V - associated fuse 80 A gG
This spec is not available in the specification table.
[Icm] Rated Short Circuit Making Capacity
2.1 kA at 400 V at Ipeak
This spec is not available in the specification table.
[Icw] Rated Short Time Withstand Current
960 A at 400 V duration: 1 s
This spec is not available in the specification table.
[Uimp] Rated Impulse Withstand Voltage
8 kV
This spec is not available in the specification table.
Suitability For Isolation
Yes
This spec is not available in the specification table.
Intermittent Duty Class
30
This spec is not available in the specification table.
Rotary Handle Mounting Style
Direct
This spec is not available in the specification table.
Handle Color
Red
This spec is not available in the specification table.
Handle Front Plate Color
Yellow
This spec is not available in the specification table.
Rotary Handle Padlocking
1 to 3 padlocks 4…8 mm
This spec is not available in the specification table.
Mechanical Durability
30000 cycles
This spec is not available in the specification table.
Electrical Durability
30000 cycles AC-21
30000 cycles DC-1...5
This spec is not available in the specification table.
Iec Terminal Connection
Power circuit: screw clamp terminals25 mm² - solid
Power circuit: screw clamp terminals16 mm² - flexible - with cable end
This spec is not available in the specification table.
Tightening Torque
Power circuit: 4 N.m - on screw clamp terminals
This spec is not available in the specification table.
Base Dimension
60 x 60 mm
This spec is not available in the specification table.
Product Certifications
CCC
GL
UL
CSA
UKCA
This spec is not available in the specification table.
Protective Treatment
TC
This spec is not available in the specification table.
Mechanical Robustness
Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
This spec is not available in the specification table.
Fire Resistance
960 °C conforming to IEC 60695-2-1
This spec is not available in the specification table.
Compatibility Code
Main switch disconnector
This spec is not available in the specification table.
Product Description
RM 675.78
