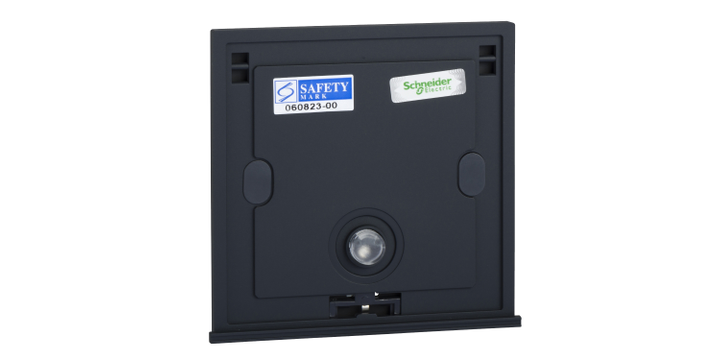

Schneider Electric U201SPM_2_B00_G2 Ulti, 1 Gang, 2 Way Switch Module, Blue Led
Schneider Electric U201SPM_2_B00_G2 Ulti, 1 Gang, 2 Way Switch Module, Blue Led
Brand: | SCHNEIDER ELECTRIC |
Model: | U201SPM_2_B00_G2 |
Product Description
Schneider Electric U201SPM_2_B00_G2 Ulti, 1 Gang, 2 Way Switch Module, Blue Led
Main
- Range: Ultimate
- Device Application: Switch Module
- Product or Component Type: Control Switch
- Load Type: Fluorescent
- Switch Application: Switching
Complementary
- Bulb Type: LED (Blue)
- Rated Current: 16 AX at 220–250 V AC, 50/60 Hz
- Number of Cables: 3 cables, 2.5 mm² each
- Opening Distance: Greater than 3 mm
- Device Mounting: Flush
- Surface Fixing Mode: By screws
- Distance Between Centers: 60.3 mm
- Operating Mode: Manual
- Number of Gangs: 1 gang
- Switch Function: 2-way
- Dimensions:
- Width: 87 mm
- Height: 87 mm
- Depth: 23.3 mm
Environment
- Ambient Air Temperature for Operation: 0–35 °C
- Ambient Air Temperature for Storage: 0–60 °C
- Relative Humidity: 0–95%
- Standards: BS EN 60669-1, IEC 60669-1
- Environmental Characteristic: Not UV resistant
- IP Degree of Protection: IP2X
- Operating Altitude: ≤ 2000 m
RM 580.25
Quantity:
EA
This item is sold by0
Schneider Electric
