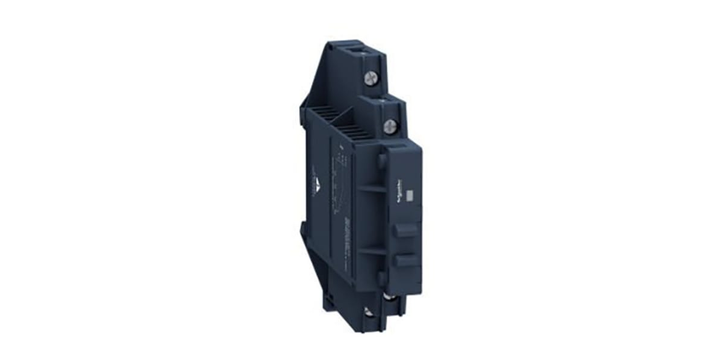

Schneider Electric SSM1A16B7 Harmony Relay Series Solid State Relay, 6 a Load, Din Rail Mount, 280 V Ac Load, 36 V Ac Control
Schneider Electric SSM1A16B7 Harmony Relay Series Solid State Relay, 6 a Load, Din Rail Mount, 280 V Ac Load, 36 V Ac Control
Brand: | SCHNEIDER ELECTRIC |
Model: | SSM1A16B7 |
Specifications
Please select at least one specification below.
Series
Harmony Relay
Mounting Type
DIN Rail
Length
11.02 mm
Depth
83.7 mm
Height
87.7 mm
Operating Temperature Range
-30 → +80°C
Standards Met
CE, CSA, UL
Maximum Load Current
6 A
Maximum Load Voltage
280 V ac
Minimum Load Voltage
24 V ac
Minimum Control Voltage
18 V ac
Maximum Control Voltage
36 V ac
Switching Type
AC
Control Voltage Range
18 → 36 V ac
Minimum Load Current
0.00015 A
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Number of Poles
1
This spec is not available in the specification table.
Dimensions
11.02 x 83.7 x 87.66mm
This spec is not available in the specification table.
Contact Configuration
SPST
This spec is not available in the specification table.
Special Features
Integrated Heat Sinks for Effective Thermal Management & Space Savings
This spec is not available in the specification table.
Terminal Type
Screw
This spec is not available in the specification table.
Capacitance
10pF
This spec is not available in the specification table.
Relay Type
Single Channel Relay
This spec is not available in the specification table.
Load Voltage Range
24 → 280V ac
This spec is not available in the specification table.
Off State Leakage Current
0.1 mA
This spec is not available in the specification table.
Output Device
SCR
This spec is not available in the specification table.
Maximum Turn On Time
1/2 cycle
This spec is not available in the specification table.
Product Description
RM 303.13
Quantity:
EA
