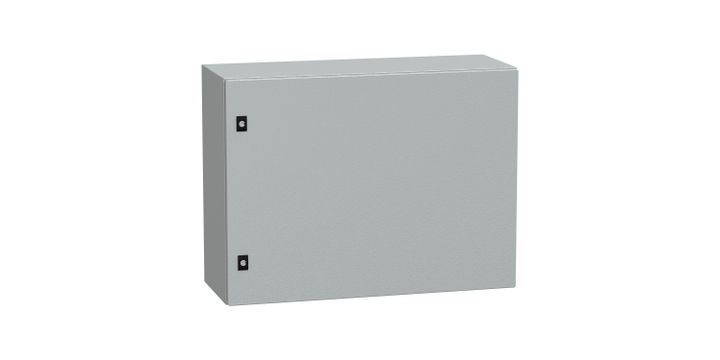

Schneider Electric NSYCRN68300 Spacial Crn Plain Door w/o Mount.plate. H600xW800xD300 IP66 IK10 RAL7035..
Schneider Electric NSYCRN68300 Spacial Crn Plain Door w/o Mount.plate. H600xW800xD300 IP66 IK10 RAL7035..
Brand: | SCHNEIDER ELECTRIC |
Model: | NSYCRN68300 |
Specifications
Please select at least one specification below.
Colour
Grey (RAL 7035)
Material
Body: steel
Category
Compact enclosure
Standards
IEC 62208
IP degree of protection
IP66 conforming to IEC 60529
Surface finish
Epoxy-polyester powder
Product Certifications
cUL
UL
DNV-GL
Enclosure Nominal Height
600 mm
Enclosure Nominal Width
800 mm
Enclosure Nominal Depth
300 mm
Application
Multi-purpose
This spec is not available in the specification table.
Range
Spacial
This spec is not available in the specification table.
Product name
Spacial CRN
This spec is not available in the specification table.
IK degree of protection
IK10 conforming to IEC 62262
This spec is not available in the specification table.
Device composition
1 body
1 door
1 lock
2 cable gland plate: bottom
This spec is not available in the specification table.
Lock Type
3 mm double-bar lock
This spec is not available in the specification table.
Door Type
Plain
This spec is not available in the specification table.
Door Opening Side
Reversible (120 °)
This spec is not available in the specification table.
Mounting Plate Description
Without mounting plate
This spec is not available in the specification table.
Removable Parts
Door by hinges
Cable gland plate by screws
This spec is not available in the specification table.
Installation Accessory Type
Wall-mounting
This spec is not available in the specification table.
Body Type
Sides made from a single folded section
Back welded with double profile forming a protected sealed area
This spec is not available in the specification table.
Number Of Doors
Front face: 1 door(s)
This spec is not available in the specification table.
Type Of Gland Plate
Standard
This spec is not available in the specification table.
Accessibility For Operation
Front
This spec is not available in the specification table.
Product Description
RM 929.59
Quantity:
EA
This item is sold by0
Schneider Electric
