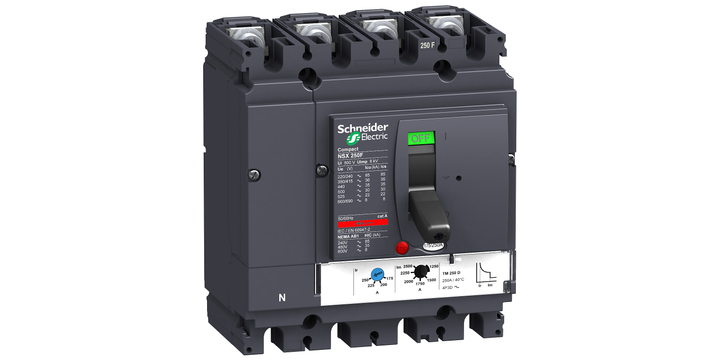

Schneider Electric LV431640 Tmd - Circuit Breaker Compact NSX250F
Schneider Electric LV431640 Tmd - Circuit Breaker Compact NSX250F
Brand: | SCHNEIDER ELECTRIC |
Model: | LV431640 |
Technical Data Sheets
Specifications
Please select at least one specification below.
Rated Current
250A
Poles
4
Rated Voltage
690 V AC
This spec is not available in the specification table.
Trip Curve
TMD
This spec is not available in the specification table.
Breaking Capacity
"85 kA at 240 V AC 50/60 Hz conforming to UL 508, 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 480 V AC 50/60 Hz conforming to UL 508, 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA at 600 V AC 50/60 Hz conforming to UL 508"
This spec is not available in the specification table.
Mounting Type
Fixed
This spec is not available in the specification table.
Standards and Certifications
EN/IEC 60947-2, UL 508
This spec is not available in the specification table.
Product Description
SCHNEIDER ELECTRIC Circuit Breaker Compact NSX250F - Tmd - 250 a - 4 Poles 3d LV431640
Main features
- Range : ComPact
- Product name : ComPact NSX
- Range of product : ComPact NSX100...250
- Device short name : NSX250F
- Product or component type : Circuit breaker
- Device application : Distribution
- Poles description : 4P
- Protected poles description : 3t
- Neutral position : Left
- [In] rated current : 250 A at 40 °C
- [Ue] rated operational voltage : 690 V AC 50/60 Hz
- Network type : AC
- Network frequency : 50/60 Hz
- Suitability for isolation : Yes conforming to EN/IEC 60947-2
- Utilisation category : Category A
- Breaking capacity : 85 kA at 240 V AC 50/60 Hz conforming to UL 50822 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-235 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-236 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-28 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-285 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-235 kA at 480 V AC 50/60 Hz conforming to UL 50830 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-215 kA at 600 V AC 50/60 Hz conforming to UL 508
- Breaking capacity code : F 36 kA 415 V AC
- Trip unit name : TM-D
- Trip unit technology : Thermal-magnetic
- Trip unit protection functions : LI
- Control type : Toggle
- Mounting mode : Fixed
RM 4,068.02
Lead time of 60 working days required.
Item will be ready to dispatch within the lead time specified.
