Schneider Electric LU2B32FU Reversing Power Base, Tesys Ultra, 3P, 1NO + 1NC, 32A, 690VAC, 110 to 240VAC/DC Coil

View Brand

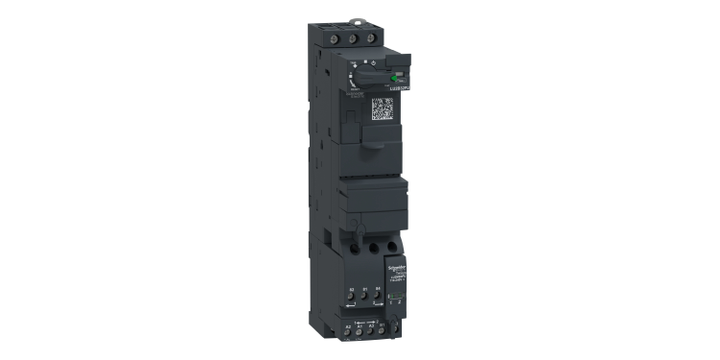

Schneider Electric LU2B32FU Reversing Power Base, Tesys Ultra, 3P, 1NO + 1NC, 32A, 690VAC, 110 to 240VAC/DC Coil

Brand:	SCHNEIDER ELECTRIC
Model:	LU2B32FU

Technical Data Sheets

Specifications

View other Motor Starter dimensions or variations

Rated Current

28.5 A at <= 440 V 23 A at 500 V 21 A at 690 V

Rated Voltage

690 V AC for power circuit

Operating Temperature

-25…60 °C with LUCM -25…70 °C with LUCA, LUCB, LUCC, LUCD

Standards and Certifications

EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier

Coil Voltage

110...240 V AC 50/60 Hz 110...220 V DC

Auxiliary Contacts

1 NO + 1 NC

Width

45 mm

Depth

126 mm

[Ui] Rated Insulation Voltage

690 V conforming to IEC 60947-6-2 (pollution degree 3) 600 V conforming to UL 60947-4-1 600 V conforming to CSA C22.2 No 60947-4-1

[Uimp] Rated Impulse Withstand Voltage

6 kV conforming to IEC 60947-6-2

Ip Degree Of Protection

IP20 conforming to IEC 60947-1 (front panel and wired terminals) IP20 conforming to IEC 60947-1 (other faces) IP40 conforming to IEC 60947-1 (front panel outside connection zone)

Height

224 mm

Range

TeSys

Product Name

TeSys Ultra

Device Short Name

LU2B

Device Application

Motor control Motor protection

Pole Configuration

Utilisation Category

AC-43 AC-44 AC-41

Compatibility Code

LU2B

Network Frequency

40...60 Hz

Suitability For Isolation

Yes

[Ics] Rated Service Breaking Capacity

50 kA at 230 V 50 kA at 440 V 10 kA at 500 V 4 kA at 690 V

Connections - Terminals

Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² rigid Control circuit: screw clamp terminals 2 cable(s) 0.34…1.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² rigid Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² rigid Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² rigid Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm² flexible without cable end

Mechanical Durability

15 Mcycles

Ambient Air Temperature For Storage

-40…85 °C

Operating Altitude

2000 m

Tightening Torque

Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm Control circuit: 0.8…1.2 N.m Philips no 1 screwdriver 5 mm Power circuit: 1.9…2.5 N.m flat screwdriver 6 mm Power circuit: 1.9…2.5 N.m Philips No 2 screwdriver 6 mm Power circuit: 1.9…2.5 N.m pozidriv No 2 screwdriver 6 mm

Fixing Mode

Clipped (DIN rail) Screw-fixed (plate)

[Ith] Conventional Free Air Thermal Current

32 A

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control Circuit Voltage Limits

55 V DC drop-out 55 V AC drop-out 88...242 V DC in operation 88...264 V AC in operation

Heat Dissipation

3 W for control circuit with LUCA, LUCB, LUCC, LUCD 1.8 W for control circuit with LUCM

Operating Time

150 ms with change of direction for power circuit 35 ms opening for control circuit 75 ms without change of direction for power circuit 50 ms closing for control circuit

Maximum Operating Rate

3600 cyc/h

Product Certifications

CE UL CSA CCC EAC ASEFA ATEX Marine

Protective Treatment

TH conforming to IEC 60068

Fire Resistance

960 °C parts supporting live components conforming to IEC 60695-2-12 650 °C conforming to IEC 60695-2-12

Product Compatibility

Control unit LUC.X6FU Control unit LUC.1XFU Control unit LUC.05FU Control unit LUC.12FU Control unit LUC.18FU Control unit LUC.32FU

Typical Current Consumption

1000 mA at 110...220 V DC I maximum while closing 1000 mA at 110...240 V AC I maximum while closing

Safe Separation Of Circuit

400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N

Shock Resistance

10 gn power poles open conforming to IEC 60068-2-27 15 gn power poles closed conforming to IEC 60068-2-27

Vibration Resistance

2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27 4 gn (f= 5…300 Hz) power poles closed conforming to IEC 60068-2-27

Resistance To Electrostatic Discharge

8 kV level 3 in open air conforming to IEC 61000-4-2 8 kV level 4 on contact conforming to IEC 61000-4-2

Non-Dissipating Shock Wave

1 kV serial mode conforming to IEC 60947-6-2 2 kV common mode conforming to IEC 60947-6-2

Resistance To Radiated Fields

10 V/m 3 conforming to IEC 61000-4-3

Resistance To Fast Transients

2 kV class 3 serial link conforming to IEC 61000-4-4 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4
