Schneider Electric LTMR08MBD Motor Management, Tesys T, Motor Controller, Modbus, 6 Logic Inputs, 3 Relay Logic Outputs, 0.4 to 8A, 24VDC

View Brand

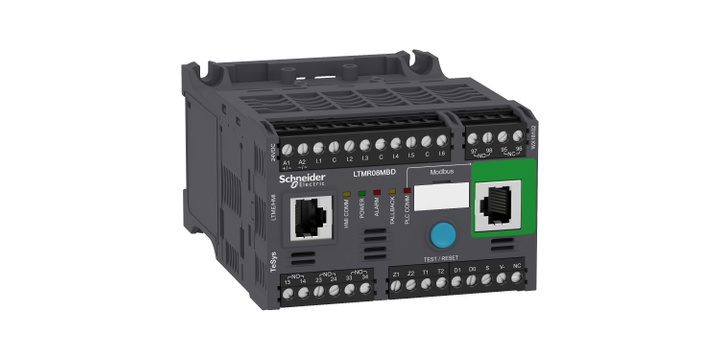

Schneider Electric LTMR08MBD Motor Management, Tesys T, Motor Controller, Modbus, 6 Logic Inputs, 3 Relay Logic Outputs, 0.4 to 8A, 24VDC

Brand:	SCHNEIDER ELECTRIC
Model:	LTMR08MBD

Technical Data Sheets

Environmental disclosure

Specifications

View other Motor Starter dimensions or variations

Operating Temperature

-20…60 °C

Standards and Certifications

IACS E10 EN 60947-4-1 UL 508 CSA C22.2 No 14 IEC 60947-4-1

Width

91 mm

Depth

122.5 mm

[Ui] Rated Insulation Voltage

690 V conforming to EN/IEC 60947-1 690 V conforming to CSA C22.2 No 14 690 V conforming to UL 508

[Uimp] Rated Impulse Withstand Voltage

6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1 0.8 kV communication circuit conforming to EN/IEC 60947-4-1 0.8 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1

Ip Degree Of Protection

IP20

Height

61 mm

Range

TeSys

Product Name

TeSys T

Device Short Name

LTMR

Device Application

Equipment monitoring and control

Connection Pitch

5.08 mm

Compatibility Code

LTMR

Measurement Current

0.4…8 A

Connections - Terminals

Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible with cable end Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) solid without cable end Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) flexible with cable end Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24...AWG 14) flexible without cable end Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) solid without cable end

Overvoltage Category

III

Pollution Degree

Ambient Air Temperature For Storage

-40…80 °C

Operating Altitude

<= 2000 m without derating

Tightening Torque

Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm

Measurement Accuracy

5...15 % earth fault current internal measurement 1 % voltage (100...830 V) 3 % power factor 5 % earth fault current external measurement +/- 30 min/year internal clock 0,02 temperature 1 % current 5 % active and reactive power

Electromagnetic Compatibility

Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5

Associated Fuse Rating

4 A gG for output 0.5 A gG for control circuit

Maximum Operating Rate

1800 cyc/h

Product Certifications

DNV EAC ABS BV CSA UL RINA RMRoS CCC GL KERI LROS (Lloyds register of shipping) NOM ATEX C-Tick

Protective Treatment

12 x 24 hour cycles conforming to EN/IEC 60068-2-30 48 h conforming to EN/IEC 60070-2-11 TH conforming to EN/IEC 60068

Mechanical Robustness

Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27

Fire Resistance

650 °C conforming to EN/IEC 60695-2-12 960 °C conforming to UL 94

Logic Input Number

Input Current

7 mA

Current State 0 Guaranteed

Logic input: < 5 V and <= 15 mA for 5 ms

Current State 1 Guaranteed

Logic input: < 15 V and 2...15 mA for 15 ms

Maximum Output Switching Frequency

2 Hz

Contacts Type And Composition

1 NO + 1 NC fault signal 3 NO

Metering Type

Average current Iavg Earth-fault current Phase current I1, I2, I3 RMS Imbalance current Temperature

[Us] Rated Supply Voltage

24 V DC

Supply Voltage Limits

20.4…26.24 V DC

Protection Type

Phase unbalance Locked rotor Power factor variation Load fluctuation Overload Overload (long time) Phase failure Thermal protection Thermal overload protection Earth-leakage protection Reverse polarity protection

Current Consumption

56...127 mA

Load Current

5 A at 250 V AC for logic output 5 A at 30 V DC for logic output

Web Services

Web server

Communication Port Protocol

Modbus

Bus Type

Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, RJ45 with 2 shielded twisted pairs Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, terminal block with 2 shielded twisted pairs

Short-Circuit Withstand

100 kA conforming to EN/IEC 60947-4-1

Network And Machine Diagnosis Type

Running hours counter/operating time Trip history information Phase fault and earth fault trip counters Fault recording Waiting time after overload tripping Remaining operating time before overload tripping Trip context information Starting current and time Event recording Motor control command recording

Permissible Power

480 VA (AC-15), Ie = 2 A, 500000 cycles (output) 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)

Product Description

RM 5,841.48
