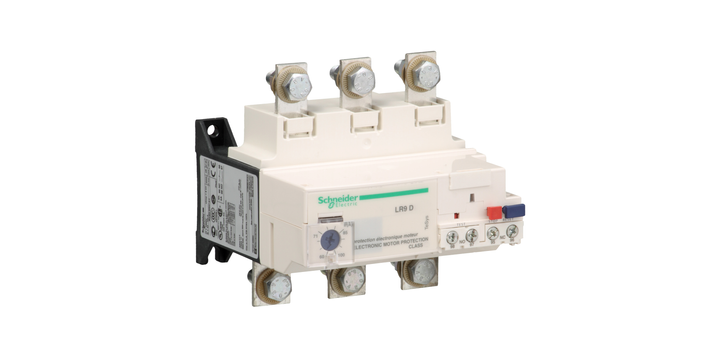

Schneider Electric LR9D5367 Thermal Overload Relays, Tesys Deca, 60...100A, Class 10

Schneider Electric LR9D5367 Thermal Overload Relays, Tesys Deca, 60...100A, Class 10

Brand:	SCHNEIDER ELECTRIC
Model:	LR9D5367

Technical Data Sheets

Product Description

Schneider Electric Thermal Overload Relays, Tesys Deca, 60...100A, Class 10 LR9D5367

TeSys LR9D electronic overload relay, 100A/1000V, thermal setting range 60-100A, tripping class 10, for protection of 3-phase motors 37-45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150.

RM 1,414.57

Lead time of 60 working days required.

Item will be ready to dispatch within the lead time specified.

Quantity:

EA

This item is sold by

Free delivery above SGD 150 spent in this shop

Shop by Specification Table

You can find items with similar specifications from the table below.

Overload Relays

overload-relays-img

NF C 63-650 IEC 60947 VDE 0660 BS 4941, IEC 60947 NF C 63-650 VDE 0660 BS 4941, IEC 60947 BS 4941 VDE 0660 NF C 63-650, VDE 0660 NF C 63-650 BS 4941 IEC 60947, NF C 63-650 IEC 60947 BS 4941 VDE 0660

[Ui] Rated Insulation Voltage

Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL, Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1, Power circuit: 1000 V AC conforming to IEC 60947-4, Power circuit: 1000 V conforming to IEC 60947-4-1, Power circuit: 690 V conforming to BS 4941 Power circuit: 690 V conforming to IEC 60947 Power circuit: 750 V conforming to VDE 0110 group C Power circuit: 600 V conforming to CSA C22.2 No 14

Ambient Air Temperature For Operation

-20 → +55 °C, -25 → +60 °C, -25 → +50 °C, -25 → 60 °C, -20 → +60 °C

Ambient Air Temperature For Storage

-30…80 °C, -55…80 °C, -40…85 °C, -60…70 °C, -40…70 °C

[Ith] Conventional Free Air Thermal Current

3 A for control circuit, 3 A for signalling circuit, 5 A for control circuit, 5 A for signalling circuit, 6 A for signalling circuit

Thermal Protection Adjustment Range

8…11.5 A, 10…14 A, 0.16…0.23 A, 0.8…1.2 A, 3.7…5.5 A

[Us] Rated Supply Voltage

100 → 120 V ac, 200 → 240 V ac, 17 → 32 V dc, 690 V, 24 V ac/dc
