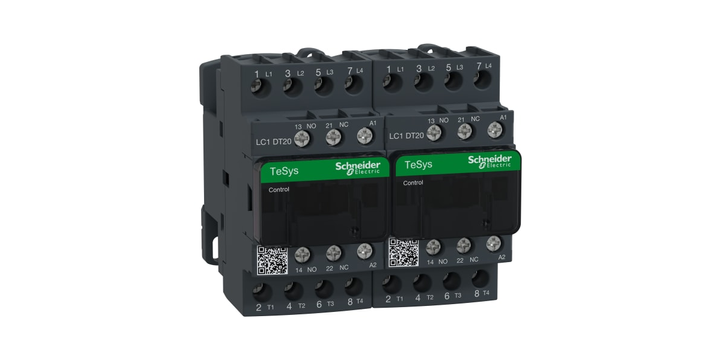

Schneider Electric LC2DT20P7 LC2D Series Contactor, 230 V Ac Coil, 4-Pole, 20 A, 4NO, 690 V Ac
Schneider Electric LC2DT20P7 LC2D Series Contactor, 230 V Ac Coil, 4-Pole, 20 A, 4NO, 690 V Ac
Brand: | SCHNEIDER ELECTRIC |
Model: | LC2DT20P7 |
Specifications
Please select at least one specification below.
Device Short Name
LC2D
Range Of Product
TeSys D
Depth
90 mm
Pole Contact Composition
4 NO
Poles Description
4P
Contactor Application
Reversing
Contactor Coil Voltage
230 V ac
Minimum Operating Temperature
-5°C
Maximum Operating Temperature
+60°C
Terminal Type
Screw
Contact Current Rating
20 A
Contact Voltage Rating
690 V ac
Better World Product
Yes
This spec is not available in the specification table.
Better World Verification
Green Premium
This spec is not available in the specification table.
Number Of Auxiliary Contacts
2
This spec is not available in the specification table.
Product Description
RM 910.10
| Units | Discount | Unit Price |
|---|---|---|
| 1 | - | RM 910.10 |
