Schneider Electric LC1D40ABBE Contactor, Tesys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 40A, 24VDC Coil, Everlink Btr Screws

View Brand

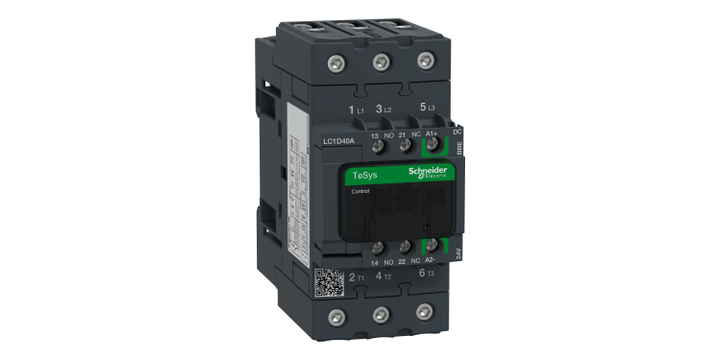

Schneider Electric LC1D40ABBE Contactor, Tesys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 40A, 24VDC Coil, Everlink Btr Screws

Brand:	SCHNEIDER ELECTRIC
Model:	LC1D40ABBE

Technical Data Sheets

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure

Specifications

View other Contactors dimensions or variations

Device Short Name

LC1D

Range Of Product

TeSys Deca

Depth

120 mm

Pole Contact Composition

3 NO

Poles Description

Contactor Application

Motor control Resistive load

Compatibility Code

LC1D

Standards

EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1

[Ui] Rated Insulation Voltage

Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage

6 kV conforming to IEC 60947

Mounting Support

Plate Rail

Connections - Terminals

Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible without cable end Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible without cable end Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with cable end Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end

Height

122 mm

Ip Degree Of Protection

IP20 front face conforming to IEC 60529

Pollution Degree

Mechanical Durability

6 Mcycles

Electrical Durability

2 Mcycles 35 A AC-3 at Ue <= 440 V 0.7 Mcycles 60 A AC-1 at Ue <= 440 V 2 Mcycles 35 A AC-3e at Ue <= 440 V

Operating Altitude

0...3000 m

Tightening Torque

Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm Power circuit: 5 N.m - with screwdriver pozidriv No 2 Control circuit: 1.7 N.m - with screwdriver pozidriv No 2

[Ue] Rated Operational Voltage

Power circuit: <= 690 V AC 25...400 Hz

[Ie] Rated Operational Current

60 A (at <60 °C) at <= 440 V AC-1 for power circuit 40 A (at <60 °C) at <= 440 V AC-3 for power circuit 40 A (at <60 °C) at <= 440 V AC-3e for power circuit

[Uc] Control Circuit Voltage

24 V DC

Heat dissipation

0.5 W

Range

TeSys TeSys Deca

Utilisation Category

AC-1 AC-3 AC-3e

Motor Power Kw

11 kW at 220...230 V AC 50 Hz (AC-3) 18.5 kW at 380...400 V AC 50 Hz (AC-3) 22 kW at 415 V AC 50 Hz (AC-3) 22 kW at 440 V AC 50 Hz (AC-3) 22 kW at 500 V AC 50 Hz (AC-3) 30 kW at 660...690 V AC 50 Hz (AC-3) 11 kW at 220...230 V AC 50 Hz (AC-3e) 18.5 kW at 380...400 V AC 50 Hz (AC-3e) 22 kW at 415 V AC 50 Hz (AC-3e) 22 kW at 440 V AC 50 Hz (AC-3e) 22 kW at 500 V AC 50 Hz (AC-3e) 30 kW at 660...690 V AC 50 Hz (AC-3e)

Protective Cover

With

Motor Power Hp

3 hp at 115 V AC 60 Hz for 1 phase motors 5 hp at 230/240 V AC 60 Hz for 1 phase motors 10 hp at 200/208 V AC 60 Hz for 3 phases motors 10 hp at 230/240 V AC 60 Hz for 3 phases motors 30 hp at 460/480 V AC 60 Hz for 3 phases motors 30 hp at 575/600 V AC 60 Hz for 3 phases motors

[Ith] Conventional Free Air Thermal Current

60 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit

Irms Rated Making Capacity

800 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1

Rated Breaking Capacity

800 A at 440 V for power circuit conforming to IEC 60947

[Icw] Rated Short-Time Withstand Current

72 A 40 °C - 10 min for power circuit 165 A 40 °C - 1 min for power circuit 320 A 40 °C - 10 s for power circuit 720 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit

Associated Fuse Rating

80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit 10 A gG for signalling circuit conforming to IEC 60947-5-1

Average Impedance

1.5 mOhm - Ith 60 A 50 Hz for power circuit

Power Dissipation Per Pole

5.4 W AC-1 2.4 W AC-3 2.4 W AC-3e

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control Circuit Type

DC DC low consumption

Coil Technology

Built-in bidirectional peak limiting

Control Circuit Voltage Limits

<= 0.1 Uc (-40…70 °C):drop-out DC 0.8...1.2 Uc (-40…60 °C):operational DC 1...1.2 Uc (60…70 °C):operational DC

Operating Time

55...65 ms closing 20...120 ms opening (date code >= 17221) 20...80 ms opening (date code >= 18011)

Auxiliary Contact Composition

3600 cyc/h 60 °C

Maximum Operating Rate

1 NO + 1 NC

Signalling Circuit Frequency

25...400 Hz

Auxiliary Contacts Type

type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1

Minimum Switching Voltage

17 V for signalling circuit

Minimum Switching Current

5 mA for signalling circuit

Insulation Resistance

> 10 MOhm for signalling circuit

Non-Overlap Time

1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact

Climatic Withstand

conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Permissible Ambient Air Temperature Around The Device

-40…60 °C 60…70 °C with derating

Fire Resistance

850 °C conforming to IEC 60695-2-1

Flame Retardance

V1 conforming to UL 94

Mechanical Robustness

Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor open (10 Gn for 11 ms) Shocks contactor closed (15 Gn for 11 ms)

Inrush Power In W

11 W (at 20 °C)

Hold-In Power Consumption In W

0.5 W at 20 °C

Product Description

RM 1,293.65

Quantity:
