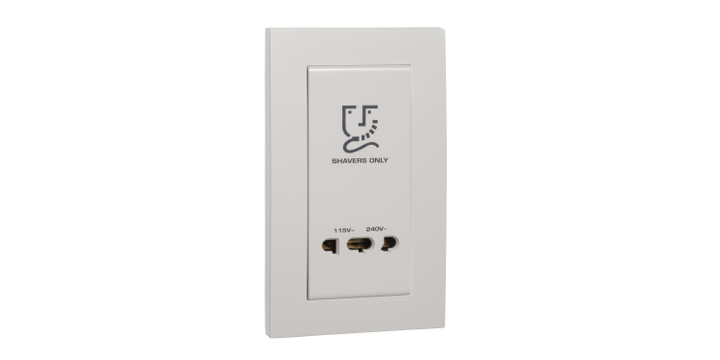

Schneider Electric KBT727V_WE 115/240V Shaver Unit White
Schneider Electric KBT727V_WE 115/240V Shaver Unit White
Brand: | SCHNEIDER ELECTRIC |
Model: | KBT727V_WE |
Specifications
Please select at least one specification below.
Ip Degree Of Protection
IP21
Number Of Gangs
2 gangs
Colour Tint
White
Rated Current
at 115/240 V AC
Material
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: base
Standards
IEC 61558-2-5
Relative Humidity
0…95 %
Ambient Air Temperature For Operation
-5…40 °C
Ambient Air Temperature For Storage
0…60 °C
Device Short Name
KBT
This spec is not available in the specification table.
Product Or Component Type
Shaver socket
This spec is not available in the specification table.
Range
Vivace
This spec is not available in the specification table.
Device Application
Power supply
This spec is not available in the specification table.
Device Presentation
Complete mechanism
This spec is not available in the specification table.
Network Frequency
50 Hz
This spec is not available in the specification table.
Connections - Terminals
Pillar terminal
This spec is not available in the specification table.
Operating Altitude
0...2000 m
This spec is not available in the specification table.
Tightening Torque
0.4 N.m
This spec is not available in the specification table.
Device Mounting
Flush
This spec is not available in the specification table.
Projecting Depth
8 mm
This spec is not available in the specification table.
Fixing Mode
By screw M3.5
This spec is not available in the specification table.
Fixing Center
120.6 mm
This spec is not available in the specification table.
Embedding Depth
40 mm
This spec is not available in the specification table.
Contacts Material
Brass and phosphor bronze
This spec is not available in the specification table.
Terminal Identifier
L
N
E
This spec is not available in the specification table.
Environmental Characteristic
Indoor use
This spec is not available in the specification table.
Input Voltage
115 V AC
This spec is not available in the specification table.
Output Voltage
240 V AC
This spec is not available in the specification table.
Clamping Connection Capacity
2.5 mm²
This spec is not available in the specification table.
Mounting Support
Wall mounted
This spec is not available in the specification table.
Product Description
RM 395.40
Quantity:
EA
MOQ of 2 EA
Bundle of 1 EA
This item is sold by0
Schneider Electric
