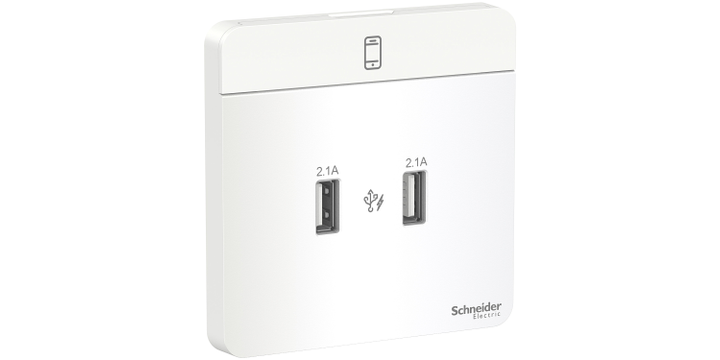

Schneider Electric E8332USB_WE_G2 Avataron, Usb Charger, 2 Type A, 2.1 A, White

Schneider Electric AvatarOn USB charger E8332USB_WE_G2 in color white is a 1-module mechanism with 2 ports. 86 mm, 86 mm and 40 mm are the width, height and depth respectively. The embedding depth is 29 mm. Besides, its rated operation voltage is 100/240V, and output current is 2.1A. Its device mounting type is surface mounting. And its connection terminal is screw terminal. The surface finish is glossy, delivering an elegant and high-end feel to a room. PC (polycarbonate) makes the switch as resistant as possible. What’s more, it well satisfied standards of IEC 60950-1. What’s more, it well satisfied standards of IEC 60950-1.

Main

Product or Component Type: USB Charger
Integrated Connection Type: 2 USB Type A, 5 V DC, Maximum Load Current: 2.1 A

Complementary

• Device Mounting: Flush
• Device Presentation: Complete product
• Colour Tint: White
• Surface Finish: Glossy
• Rated Operational Voltage: 100/240 V AC 50/60 Hz
• Maximum Load Current with 2 Outputs Used Simultaneously: 2.1 A
• Material: PC (Polycarbonate)
• Connections - Terminals: Screw Terminals
• Screwdriver Shape: Phillips Combined
• Clamping Connection Capacity:
• 1.5 - 2.5 mm² for Flexible Cable(s)
• 1.5 - 2.5 mm² for Rigid Cable(s)
• Height: 86 mm
• Width: 86 mm
• Depth: 40 mm

Environment

• Standards: IEC 60950-1
• Electrical Insulation Class: Class II
• IP Degree of Protection: IP20
