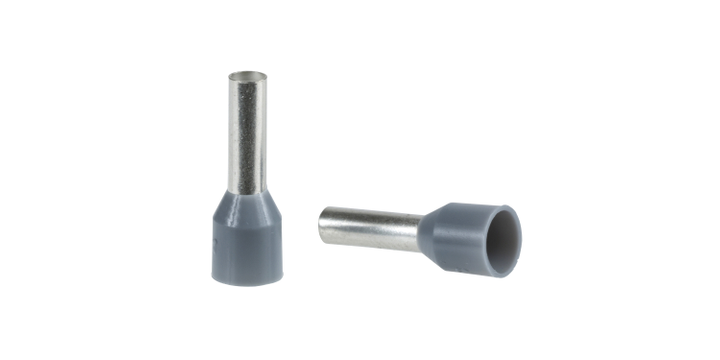

Schneider Electric DZ5CE025 Cable Ends, Linergy Tr Cable Ends, Single Conductor, Grey, 2.5mm², Medium Size, 10 Sets of 100

Linergy cable end insulated without marker tag holder. It applied to single conductor with 2.5 mm² cable cross section. It has grey surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).

Range of product : Linergy

product or component type : Cable end

cable end size : Medium

Standards : NF C 63-023

Type of packing : String of bags

Quantity per set : 10 sets of 100

cable cross section : 2.5 mm²

Cable end type : Single conductor

Additional information : Without marker tag holder

Colour : Grey

bezel material : Halogen-free plastic

Tube material : Copper conforming to ISO 1337

Number of cables : 1

AWG gauge : AWG 14

bezel size : Ø 4.7 mm

Tube diameter : 2.5 mm

Length : 14 mm

Tube length : 8 mm

net weight : 0.15 kg

Product certifications : UL

Ambient air temperature for operation : -20…105 °C
