Schneider Electric BCH2LD0233CA5C Servo Servo Motor, 200 W, 220 V Dc, 1.92 Nm, 5000 Rpm, 14mm Shaft Diameter

View Brand

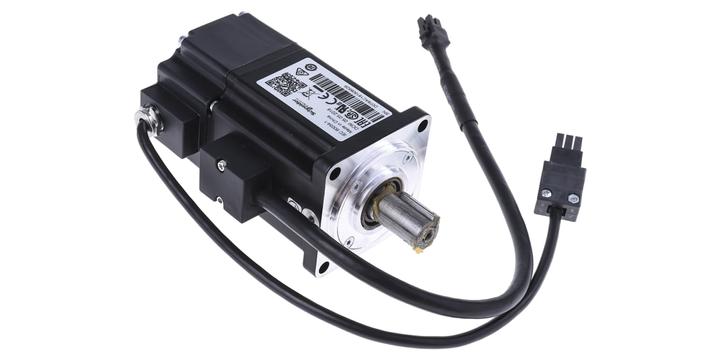

Schneider Electric BCH2LD0233CA5C Servo Servo Motor, 200 W, 220 V Dc, 1.92 Nm, 5000 Rpm, 14mm Shaft Diameter

Brand:	SCHNEIDER ELECTRIC
Model:	BCH2LD0233CA5C

Specifications

View other Servo Motors dimensions or variations

Standards Met

RoHS

Supply Voltage

220 V dc

Power Rating

200 W

DC Motor Type

Servo

Output Speed

5000 rpm

Shaft Diameter

14 mm

Maximum Output Torque

1.92 Nm

Width

60 mm

Series

BCH2

Length

134 mm

Current Rating

4.31 A rms

Depth

73.5 mm

Dimensions

134 x 60 x 73.5 mm

Better World Product

Yes

Better World Verification

Green Premium

Product Description

RM 2,331.42

Quantity:

This item is sold by

SG-4570630354

Shop by Specification Table

You can find items with similar specifications from the table below.

Servo Motors

55 Items

Supply Voltage

220 V dc, 480 V, 220 V, 400 V, 250 → 700 V dc

Power Rating

1.6 kW, 670 W, 300 W, 1.3 kW, 2.5 kW

Output Speed

4400 rpm, 3700 rpm, 5000 rpm, 2000 rpm, 8000 rpm

Shaft Diameter

14 mm, 19 mm, 22 mm, 8 mm, 24 mm

Maximum Output Torque

0.64 Nm, 1.3 Nm, 2.86 Nm, 3.4 Nm, 9.5 Nm

Stall Torque

1.92 Nm, 3.8 Nm, 8.59 Nm, 10.8 Nm, 27 Nm
