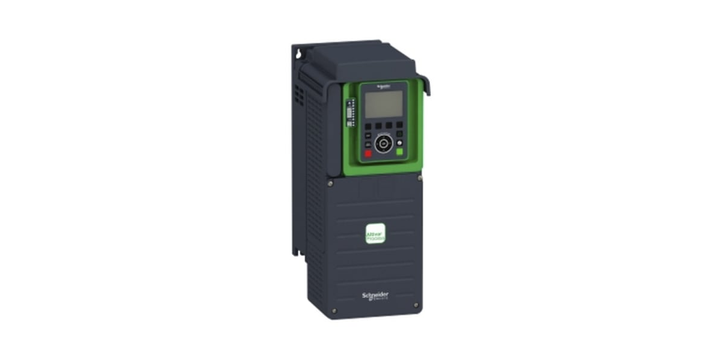

Schneider Electric ATV930U75N4 Variable Speed Drive, 7.5 Kw, 3 Phase, 400 V Ac, 10.5 A, 13.8 A, ATV930 Series

Schneider Electric ATV930U75N4 Variable Speed Drive, 7.5 Kw, 3 Phase, 400 V Ac, 10.5 A, 13.8 A, ATV930 Series

Brand:	SCHNEIDER ELECTRIC
Model:	ATV930U75N4

Specifications

View other Inverter Drives dimensions or variations

Width

236 mm

Depth

409 mm

Mounting Mode

Wall Mount

Standard

EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, UL 508C

IP Degree of Protection

IP21

[Us] Rated Supply Voltage

400 V ac

Network Number of Phases

3

Series Name

ATV930

Current Rating

10.5 A, 13.8 A

For Use With

Asynchronous Motors, Synchronous Motors

Power Rating

7.5 kW

Device Application

Motor Control

Output Frequency

0.1 → 599Hz

Overall Length

171 mm

Drive Type

Variable Speed

Special Features

Earth Continuity, Ease of Installation, Maintenance of the Variable Speed Drive Fan (Kit Sizes 4 and 5), Strength, Tightness

Field Bus Communication Type

Profibus

STO

Yes

Filter Included

Yes

Control Panel

Yes

Better World Product

Yes

Better World Verification

Green Premium

Better World Claim

Saves energy

Product Description

RM 13,019.54

Units	Discount	Unit Price
1	-	RM 13,019.54

Quantity:

EA
