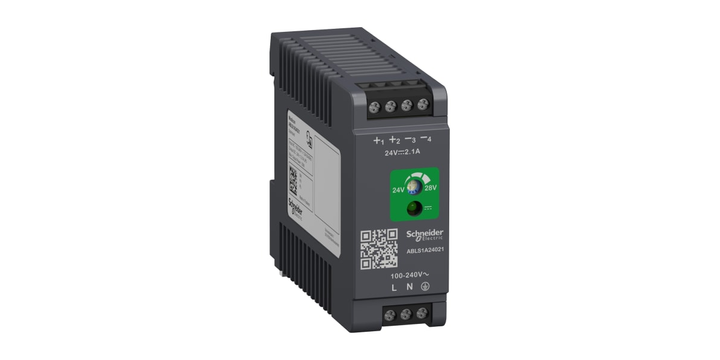

Schneider Electric ABLS1A24021 ABLS1A Switched Mode Din Rail Power Supply, 100 → 240V Ac Ac Input, 24V Dc Dc Output, 2.1A

View Brand

Schneider Electric ABLS1A24021 ABLS1A Switched Mode Din Rail Power Supply, 100 → 240V Ac Ac Input, 24V Dc Dc Output, 2.1A

Brand:	SCHNEIDER ELECTRIC
Model:	ABLS1A24021

Specifications

View other DIN Rail Power Supplies dimensions or variations

Type

Switched Mode

Standards Met

Minimum Temperature

-20°C

Maximum Temperature

+70°C

Output Voltage

24 V dc

Input Voltage

100 → 240 V ac

Power Rating

50 W

Efficiency

86%

Width

30 mm

Series

ABLS1A

Mounting Type

DIN Rail Mount

Depth

89.5 mm

Height

75 mm

Special Features

Overvoltage and Short Circuit Protection

MTBF

20000000 h

Output Current

2.1 A

AC or DC Output Voltage

Electrical Phase

Ripple And Noise

75 mV

Output Voltage Adjustment Range

24 → 28 V

Load Regulation

Better World Product

Yes

Better World Verification

Green Premium

AC or DC Input Voltage

Product Description

RM 543.44

Quantity:

This item is sold by

SG-4570630354
