Schneider Electric ABLM1A05036 ABLM1A Switched Mode Din Rail Power Supply, 100 → 240V Ac Ac Input, 5V Dc Dc Output, 3.6A

View Brand

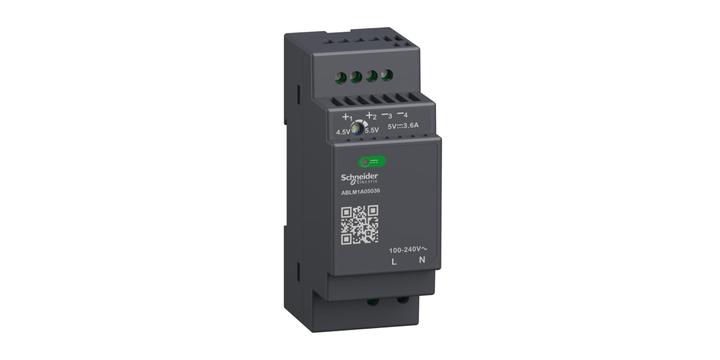

Schneider Electric ABLM1A05036 ABLM1A Switched Mode Din Rail Power Supply, 100 → 240V Ac Ac Input, 5V Dc Dc Output, 3.6A

Brand:	SCHNEIDER ELECTRIC
Model:	ABLM1A05036

Specifications

View other DIN Rail Power Supplies dimensions or variations

Type

Switched Mode

Standards Met

Minimum Temperature

-25°C

Maximum Temperature

+70°C

Output Voltage

5 V dc

Input Voltage

100 → 240 V ac

Power Rating

18 W

Efficiency

80%

Width

36 mm

Series

ABLM1A

Mounting Type

DIN Rail Mount

Depth

55.6 mm

Height

91 mm

Special Features

Overvoltage and Short Circuit Protection

MTBF

1000000 h

Output Current

3.6 A

AC or DC Output Voltage

Electrical Phase

Ripple And Noise

100 mV

Output Voltage Adjustment Range

4.5 → 5.5 V

Load Regulation

Better World Product

Yes

Better World Verification

Green Premium

AC or DC Input Voltage
