Schneider Electric A9PK1710 Acti 9 Acti9 iDT40K Xa Mcb, 3P+N, 10A Curve C, 230V Ac

View Brand

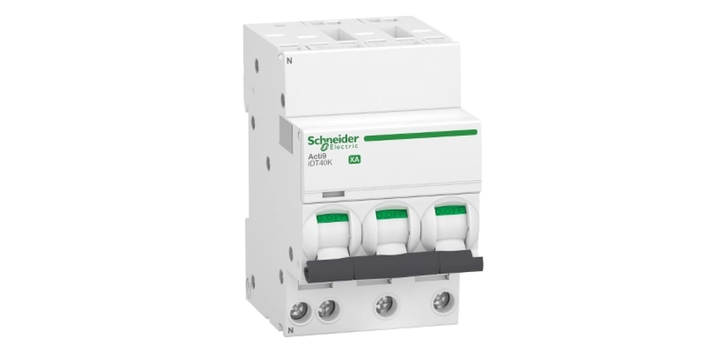

Schneider Electric A9PK1710 Acti 9 Acti9 iDT40K Xa Mcb, 3P+N, 10A Curve C, 230V Ac

Brand:	SCHNEIDER ELECTRIC
Model:	A9PK1710

Specifications

View other Miniature Circuit Breakers - MCBs dimensions or variations

Range

Acti 9

Poles Description

3P+N

[In] Rated Current

10 A

Mounting Support

DIN Rail Mount

Series Name

Acti 9 iDT40K XA

Tripping Characteristics

Type C

Rated AC Voltage

230 V

Product Description

RM 669.20

Quantity:

This item is sold by

SG-4570630354
