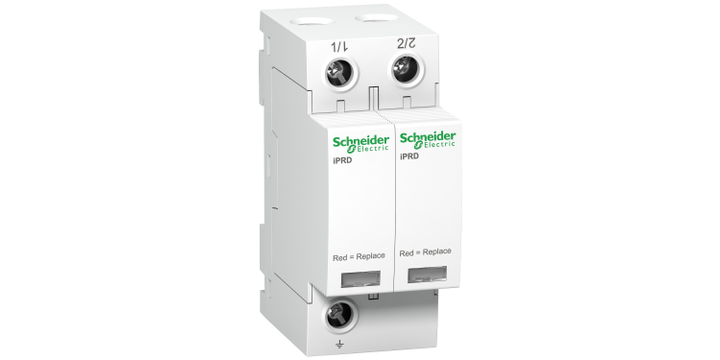

Schneider Electric A9L40200 2P - iPRD40 Modular Surge Arrester
Schneider Electric A9L40200 2P - iPRD40 Modular Surge Arrester
Brand: | SCHNEIDER ELECTRIC |
Model: | A9L40200 |
Specifications
Please select at least one specification below.
Colour
White (RAL 9003)
Device Short Name
iPRD40
Product Or Component Type
Surge arrester with pluggable cartridge
Poles Description
2P
Standards
EN 61643-11:2012
IEC 61643-11:2011
Tightening Torque
2.5 N.m
[Ue] Rated Operational Voltage
230/400 V AC (+/- 10 %) at 50/60 Hz
Earthing System
TN-C-S
Surge Arrester Technology
MOV
[Ipe] Ground Residual Current
0.003 mA
0.6 mA
Product Name
Acti9 iPRD
This spec is not available in the specification table.
Device Application
Distribution
This spec is not available in the specification table.
Mounting Mode
Clip-on (DIN rail)
This spec is not available in the specification table.
Range Of Product
Acti9
This spec is not available in the specification table.
Quality Labels
KEMA-KEUR
NF
This spec is not available in the specification table.
Connections - Terminals
Tunnel type terminal (downside) 2.5…35 mm²
Tunnel type terminal (upside) 2.5…35 mm²
This spec is not available in the specification table.
9 Mm Pitches
4
This spec is not available in the specification table.
Relative Humidity
5…95 %
This spec is not available in the specification table.
Ambient Air Temperature For Operation
-25…60 °C
This spec is not available in the specification table.
Ambient Air Temperature For Storage
-40…85 °C
This spec is not available in the specification table.
Operating Altitude
2000 m
This spec is not available in the specification table.
Product Certifications
CE
This spec is not available in the specification table.
Ik Degree Of Protection
IK03 conforming to IEC 62262
This spec is not available in the specification table.
Remote Signalling
Without
This spec is not available in the specification table.
Surge Arrester Type
Electrical distribution network
This spec is not available in the specification table.
Surge Arrester Class Type
Type 2
This spec is not available in the specification table.
[In] Nominal Discharge Current
Common mode: 15 kA (L/PE)
Common mode: 15 kA (N/PE)
This spec is not available in the specification table.
[Imax] Maximum Discharge Current
Common mode: 40 kA L/PE
Common mode: 40 kA N/PE
This spec is not available in the specification table.
[Uc] Maximum Continuous Operating Voltage
Common mode: 350 V L/PE
Common mode: 350 V N/PE
This spec is not available in the specification table.
Maximum [Up] Voltage Protection Level
Common mode <1.4 kV type 2 L/PE
Common mode <1.4 kV type 2 N/PE
This spec is not available in the specification table.
[Ut] Temporary Overvoltage
337 V L/N 5 s withstand
1200 V N/PE 200 ms safe failure mode
This spec is not available in the specification table.
Disconnector Device Type
Associated circuit breaker iC60H 40 A curve C - Icu 15 kA
Associated circuit breaker IC60N 40 A curve C - Icu 10 kA
Associated circuit breaker NG125H 40 A curve C - Icu 36 kA
Associated circuit breaker NG125L 40 A curve C - Icu 50 kA
Associated circuit breaker NG125N 40 A curve C - Icu 25 kA
Associated fuse gG 63 A - Icu 15 kA
Associated fuse gG 80 A - Icu 50 kA
This spec is not available in the specification table.
Product Description
RM 3,449.40
Quantity:
EA
MOQ of 6 EA
Bundle of 1 EA
